Apply database proactive bundle patch in RAC using manual process DBACLASS

Steps for applying proactive bundle patch(BP) or PSU patches in RAC grid home and database home using manual methods. if opatchauto doesnt work , then use this manual

oracle clusteringintermediate
by OracleDba
16 views
1

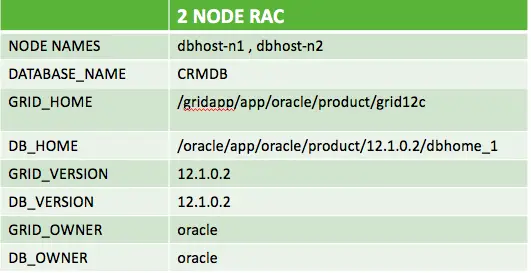

ENVIROMENT :

> Note – > The patching will be done in rolling fashion. I.e first patch will be applied on node1 , during which node2 will be running fine. and once node1 patching is over and its services are up, we can proceed with patching on node 2. Note – > The patching will be done in rolling fashion. I.e first patch will be applied on node1 , during which node2 will be running fine. and once node1 patching is over and its services are up, we can proceed with patching on node 2. In this below demo, We have shown the steps for first node ( dbhost-n1).
Step 1
2

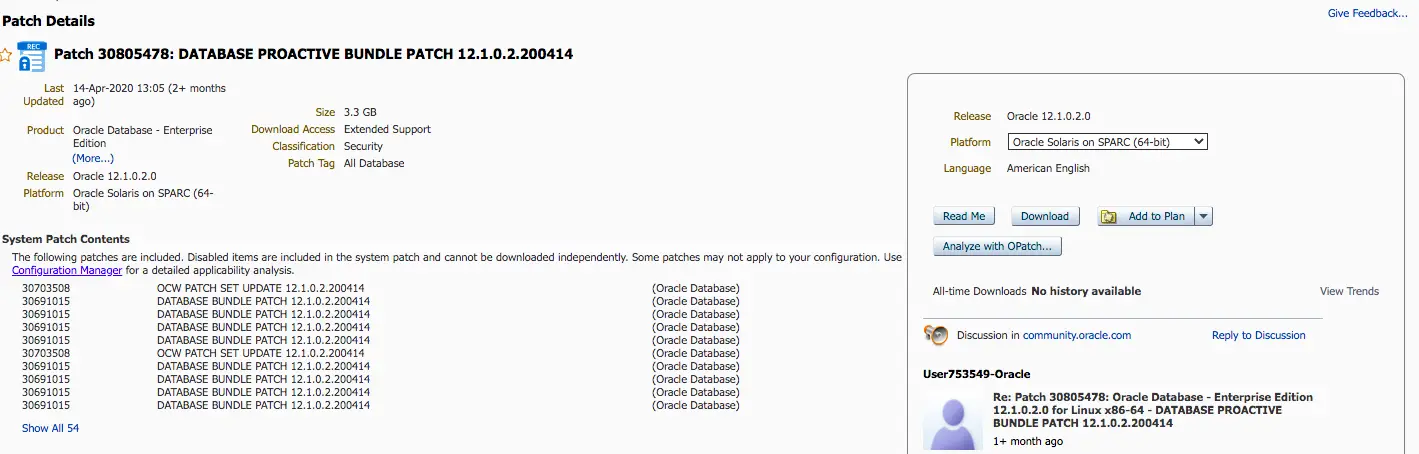

1. Download the latest bundle patch from oracle support.

This patchset comes with below patches:
Step 2
3

2. Copy the patch to both the nodes and unzip there.

Code/Command (click line numbers to comment):

1
2
cd /dumparea/APR2020BP
unzip p30805478_121020_SOLARIS64.zip
4

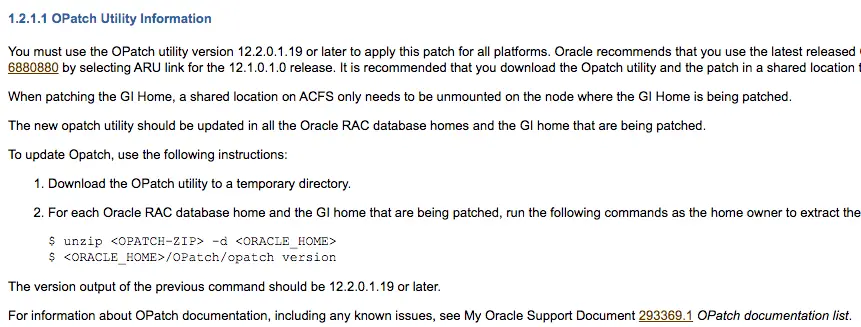

3. Check the recommended opatch version for both db_home and grid_home

For the recommended opatch version, always check the readme file. A per readme file 12.2.0.19 or later is recommended. Lets check in our environment. In our case the the opatch version(12.2.0.21) is latest. So no need to upgrade the opatch utility. If your opatch version is lower than the recommended, then follow the below link to upgrade your opatch version: LINK – > How to install/upgrade OPatch in RAC
Step 4

Code/Command (click line numbers to comment):

1
2
3
4
5
cd $GRID_HOME
/gridapp/app/oracle/product/grid12c/OPatch# ./opatch version
OPatch Version: 12.2.0.1.21

OPatch succeeded.
5

4. Check for patch conflicts with GRID_HOME:

cd $GRID_HOME/OPatch ./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/30691015 ./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/30703508 ./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/30703511 ./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/26983807 If any conflict is reported, then those need to be taken care.

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
cd /gridapp/app/oracle/product/grid12c/OPatch

oracle@dbhost-n1:.$ ./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/30691015
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.

PREREQ session

Oracle Home       : /gridapp/app/oracle/product/grid12c
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-16_15-42-45PM_1.log

Invoking prereq "checkconflictagainstohwithdetail"

Prereq "checkConflictAgainstOHWithDetail" passed.

OPatch succeeded.



oracle@dbhost-n1:$ ./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/30703508
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.

PREREQ session

Oracle Home       : /gridapp/app/oracle/product/grid12c
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-16_15-42-56PM_1.log

Invoking prereq "checkconflictagainstohwithdetail"

Prereq "checkConflictAgainstOHWithDetail" passed.

OPatch succeeded.



oracle@dbhost-n1:...$ ./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/30703511
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.

PREREQ session

Oracle Home       : /gridapp/app/oracle/product/grid12c
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-16_15-43-04PM_1.log

Invoking prereq "checkconflictagainstohwithdetail"

Prereq "checkConflictAgainstOHWithDetail" passed.

OPatch succeeded.


oracle@dbhost-n1:.$ ./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/26983807
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.

PREREQ session

Oracle Home       : /gridapp/app/oracle/product/grid12c
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-16_15-43-12PM_1.log

Invoking prereq "checkconflictagainstohwithdetail"

Prereq "checkConflictAgainstOHWithDetail" passed.

OPatch succeeded.
6

4. Check for patch conflicts with DB_HOME:

If any conflict is reported, then those need to be taken care.

Code/Command (click line numbers to comment):

1
2
./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/30691015
./opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /dumparea/APR2020BP/30805478/30703508
7

5. Check whether sufficient space available for patching in GRID_HOME

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
% cat /tmp/patch_list_gihome.txt
/dumparea/APR2020BP/30805478/26983807
/dumparea/APR2020BP/30805478/30703511
/dumparea/APR2020BP/30805478/30703508
/dumparea/APR2020BP/30805478/30691015



-- space checker:
--------------------------
oracle@dbhost-n1:.../oracle/product/grid12c/OPatch$ ./opatch prereq CheckSystemSpace -phBaseFile /tmp/patch_list_gihome.txt
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.

PREREQ session

Oracle Home       : /gridapp/app/oracle/product/grid12c
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-16_15-44-55PM_1.log

Invoking prereq "checksystemspace"

Prereq "checkSystemSpace" passed.

OPatch succeeded.
8

5. Check whether sufficient space available for patching in DB_HOME:

6. shutdown the services running on db_home: Shutdown database instance and listener services running on this node1

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
$cat /tmp/patch_list_dbhome.txt
/dumparea/APR2020BP/30805478/30703508
/dumparea/APR2020BP/30805478/30691015

$ $ORACLE_HOME/OPatch/opatch prereq CheckSystemSpace -phBaseFile /tmp/patch_list_dbhome.txt

Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.

PREREQ session

Oracle Home       : /oracle/app/oracle/product/12.1.0.2/dbhome_1
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /oracle/app/oracle/product/12.1.0.2/dbhome_1/cfgtoollogs/opatch/opatch2020-06-16_15-44-55PM_1.log

Invoking prereq "checksystemspace"

Prereq "checkSystemSpace" passed.

OPatch succeeded.

export ORACLE_HOME=/oracle/app/oracle/product/12.1.0.2/dbhome_1
export PATH=$ORACLE_HOME/bin:$PATH

srvctl stop home -o /oracle/app/oracle/product/12.1.0.2/dbhome_1 -s /dumparea/db_prepatch_stat.txt -n dbhost-n1
9

7. Prepare the CRS for patching:

This script need to be executed from root user. root#/gridapp/app/oracle/product/grid12c/crs/install/rootcrs.sh -prepatch

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
root@dbhost-n1:~# /gridapp/app/oracle/product/grid12c/crs/install/rootcrs.sh -prepatch
Using configuration parameter file: /gridapp/app/oracle/product/grid12c/crs/install/crsconfig_params
Oracle Clusterware active version on the cluster is [12.1.0.2.0]. The cluster upgrade state is [ROLLING PATCH]. The cluster active patch level is [4267482287].
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.crsd' on 'dbhost-n1'
CRS-2790: Starting shutdown of Cluster Ready Services-managed resources on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.LISTENER_SCAN3.lsnr' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.LISTENER_SCAN2.lsnr' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.LISTENER_TEST.lsnr' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.DATA.dg' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.REDOA.dg' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.OCRVD.dg' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.MGMT.dg' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.cvu' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.REDOB.dg' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.oc4j' on 'dbhost-n1'
CRS-2677: Stop of 'ora.cvu' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.cvu' on 'dbhost-n2'
CRS-2677: Stop of 'ora.OCRVD.dg' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.MGMT.dg' on 'dbhost-n1' succeeded
CRS-2676: Start of 'ora.cvu' on 'dbhost-n2' succeeded
CRS-2677: Stop of 'ora.LISTENER_SCAN2.lsnr' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.scan2.vip' on 'dbhost-n1'
CRS-2677: Stop of 'ora.LISTENER_SCAN3.lsnr' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.scan3.vip' on 'dbhost-n1'
CRS-2677: Stop of 'ora.LISTENER_TEST.lsnr' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.LISTENER.lsnr' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.LISTENER_GSM.lsnr' on 'dbhost-n1'
CRS-2677: Stop of 'ora.DATA.dg' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.LISTENER_GSM.lsnr' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.LISTENER.lsnr' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.dbhost-n1.vip' on 'dbhost-n1'
CRS-2677: Stop of 'ora.scan2.vip' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.scan2.vip' on 'dbhost-n2'
CRS-2677: Stop of 'ora.REDOB.dg' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.REDOA.dg' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.ARCH.dg' on 'dbhost-n1'
CRS-2677: Stop of 'ora.scan3.vip' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.scan3.vip' on 'dbhost-n2'
CRS-2677: Stop of 'ora.ARCH.dg' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.asm' on 'dbhost-n1'
CRS-2677: Stop of 'ora.asm' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.dbhost-n1.vip' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.dbhost-n1.vip' on 'dbhost-n2'
CRS-2677: Stop of 'ora.oc4j' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.oc4j' on 'dbhost-n2'
CRS-2676: Start of 'ora.dbhost-n1.vip' on 'dbhost-n2' succeeded
CRS-2676: Start of 'ora.scan2.vip' on 'dbhost-n2' succeeded
CRS-2672: Attempting to start 'ora.LISTENER_SCAN2.lsnr' on 'dbhost-n2'
CRS-2676: Start of 'ora.scan3.vip' on 'dbhost-n2' succeeded
CRS-2672: Attempting to start 'ora.LISTENER_SCAN3.lsnr' on 'dbhost-n2'
CRS-2676: Start of 'ora.LISTENER_SCAN2.lsnr' on 'dbhost-n2' succeeded
CRS-2676: Start of 'ora.LISTENER_SCAN3.lsnr' on 'dbhost-n2' succeeded
CRS-2676: Start of 'ora.oc4j' on 'dbhost-n2' succeeded
CRS-2673: Attempting to stop 'ora.ons' on 'dbhost-n1'
CRS-2677: Stop of 'ora.ons' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.net1.network' on 'dbhost-n1'
CRS-2677: Stop of 'ora.net1.network' on 'dbhost-n1' succeeded
CRS-2792: Shutdown of Cluster Ready Services-managed resources on 'dbhost-n1' has completed
CRS-2677: Stop of 'ora.crsd' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.storage' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.evmd' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.mdnsd' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.gpnpd' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'dbhost-n1'
CRS-2677: Stop of 'ora.storage' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.asm' on 'dbhost-n1'
CRS-2677: Stop of 'ora.drivers.acfs' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.evmd' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.gpnpd' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.mdnsd' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.asm' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.cluster_interconnect.haip' on 'dbhost-n1'
CRS-2677: Stop of 'ora.cluster_interconnect.haip' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.crf' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.ctssd' on 'dbhost-n1'
CRS-2677: Stop of 'ora.crf' on 'dbhost-n1' succeeded
CRS-2677: Stop of 'ora.ctssd' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.cssd' on 'dbhost-n1'
CRS-2677: Stop of 'ora.cssd' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.gipcd' on 'dbhost-n1'
CRS-2677: Stop of 'ora.gipcd' on 'dbhost-n1' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'dbhost-n1' has completed
CRS-4133: Oracle High Availability Services has been stopped.
2020/06/17 14:10:54 CLSRSC-4012: Shutting down Oracle Trace File Analyzer (TFA) Collector.

2020/06/17 14:11:44 CLSRSC-4013: Successfully shut down Oracle Trace File Analyzer (TFA) Collector.

2020/06/17 14:11:46 CLSRSC-347: Successfully unlock /gridapp/app/oracle/product/grid12c
10

8. Apply the patches to grid home:

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
oracle@dbhost-n1:.../oracle/product/grid12c/OPatch$ ./opatch apply -oh /gridapp/app/oracle/product/grid12c -local /dumparea/APR2020BP/30805478/26983807
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.


Oracle Home       : /gridapp/app/oracle/product/grid12c
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-17_14-12-53PM_1.log

Verifying environment and performing prerequisite checks...

The following patch(es) are duplicate patches with patches installed in the Oracle Home.
 [ 26983807]
You have already installed same patch(es) with same UPI(s) or same version(s).
These patch(es) will be skipped.


OPatch Session completed with warnings.
Log file location: /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-17_14-12-53PM_1.log

OPatch completed with warnings.

oracle@dbhost-n1:.../oracle/product/grid12c/OPatch$ ./opatch apply -oh /gridapp/app/oracle/product/grid12c -local /dumparea/APR2020BP/30805478/30703511
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.


Oracle Home       : /gridapp/app/oracle/product/grid12c
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-17_14-13-14PM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   30703511

Do you want to proceed? [y|n]
y
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/gridapp/app/oracle/product/grid12c')


Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files...
Applying interim patch '30703511' to OH '/gridapp/app/oracle/product/grid12c'

Patching component oracle.usm, 12.1.0.2.0...
Patch 30703511 successfully applied.
Sub-set patch [29423125] has become inactive due to the application of a super-set patch [30703511].
Please refer to Doc ID 2161861.1 for any possible further required actions.
Log file location: /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-17_14-13-14PM_1.log

OPatch succeeded.

oracle@dbhost-n1:.../oracle/product/grid12c/OPatch$ ./opatch apply -oh /gridapp/app/oracle/product/grid12c -local /dumparea/APR2020BP/30805478/30703508
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.


Oracle Home       : /gridapp/app/oracle/product/grid12c
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-17_14-13-44PM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   30703508

Do you want to proceed? [y|n]
y
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/gridapp/app/oracle/product/grid12c')


Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files...
Applying interim patch '30703508' to OH '/gridapp/app/oracle/product/grid12c'

Patching component oracle.rdbms, 12.1.0.2.0...

Patching component oracle.has.crs, 12.1.0.2.0...

Patching component oracle.has.db, 12.1.0.2.0...

Patching component oracle.has.common, 12.1.0.2.0...

Patching component oracle.has.deconfig, 12.1.0.2.0...

Patching component oracle.has.common.cvu, 12.1.0.2.0...

Patching component oracle.has.cvu, 12.1.0.2.0...

Patching component oracle.has.rsf, 12.1.0.2.0...
Patch 30703508 successfully applied.
Sub-set patch [29509318] has become inactive due to the application of a super-set patch [30703508].
Please refer to Doc ID 2161861.1 for any possible further required actions.
Log file location: /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-17_14-13-44PM_1.log

OPatch succeeded.

oracle@dbhost-n1:.../oracle/product/grid12c/OPatch$ ./opatch apply -oh /gridapp/app/oracle/product/grid12c -local /dumparea/APR2020BP/30805478/30691015
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.


Oracle Home       : /gridapp/app/oracle/product/grid12c
Central Inventory : /gridapp/app/oraInventory
   from           : /gridapp/app/oracle/product/grid12c/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-17_14-15-56PM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   29972716  30364137  30691015

Do you want to proceed? [y|n]
y
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/gridapp/app/oracle/product/grid12c')


Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files...
Applying sub-patch '29972716' to OH '/gridapp/app/oracle/product/grid12c'
ApplySession: Optional component(s) [ oracle.ctx, 12.1.0.2.0 ] , [ oracle.rdbms.lbac, 12.1.0.2.0 ]  not present in the Oracle Home or a higher version is found.

Patching component oracle.ldap.rsf, 12.1.0.2.0...

Patching component oracle.network.rsf, 12.1.0.2.0...

Patching component oracle.rdbms.rsf, 12.1.0.2.0...

Patching component oracle.rdbms, 12.1.0.2.0...

Patching component oracle.rdbms.deconfig, 12.1.0.2.0...

Patching component oracle.has.crs, 12.1.0.2.0...

Patching component oracle.rdbms.rman, 12.1.0.2.0...

Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...

Patching component oracle.rdbms.util, 12.1.0.2.0...

Patching component oracle.rdbms.crs, 12.1.0.2.0...

Patching component oracle.ldap.rsf.ic, 12.1.0.2.0...
Applying sub-patch '30364137' to OH '/gridapp/app/oracle/product/grid12c'
ApplySession: Optional component(s) [ oracle.rdbms.oci, 12.1.0.2.0 ] , [ oracle.rdbms.drdaas, 12.1.0.2.0 ] , [ oracle.precomp.lang, 12.1.0.2.0 ] , [ oracle.precomp.common, 12.1.0.2.0 ] , [ oracle.rdbms.tg4tera, 12.1.0.2.0 ] , [ oracle.rdbms.tg4sybs, 12.1.0.2.0 ] , [ oracle.rdbms.tg4ifmx, 12.1.0.2.0 ] , [ oracle.rdbms.tg4db2, 12.1.0.2.0 ] , [ oracle.rdbms.tg4msql, 12.1.0.2.0 ] , [ oracle.rdbms.hsodbc, 12.1.0.2.0 ]  not present in the Oracle Home or a higher version is found.

Patching component oracle.ldap.rsf, 12.1.0.2.0...

Patching component oracle.rdbms, 12.1.0.2.0...

Patching component oracle.rdbms.rsf, 12.1.0.2.0...

Patching component oracle.rdbms.util, 12.1.0.2.0...

Patching component oracle.ldap.rsf.ic, 12.1.0.2.0...

Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...

Patching component oracle.rdbms.rman, 12.1.0.2.0...

Patching component oracle.rdbms.crs, 12.1.0.2.0...

Patching component oracle.has.crs, 12.1.0.2.0...
Applying sub-patch '30691015' to OH '/gridapp/app/oracle/product/grid12c'
ApplySession: Optional component(s) [ oracle.rdbms.dv, 12.1.0.2.0 ] , [ oracle.xdk, 12.1.0.2.0 ] , [ oracle.oraolap, 12.1.0.2.0 ] , [ oracle.precomp.lang, 12.1.0.2.0 ] , [ oracle.precomp.common, 12.1.0.2.0 ] , [ oracle.ctx, 12.1.0.2.0 ]  not present in the Oracle Home or a higher version is found.

Patching component oracle.rdbms, 12.1.0.2.0...

Patching component oracle.network.rsf, 12.1.0.2.0...

Patching component oracle.rdbms.rsf, 12.1.0.2.0...

Patching component oracle.ldap.rsf, 12.1.0.2.0...

Patching component oracle.tfa, 12.1.0.2.0...

Patching component oracle.rdbms.rman, 12.1.0.2.0...

Patching component oracle.nlsrtl.rsf, 12.1.0.2.0...

Patching component oracle.ldap.rsf.ic, 12.1.0.2.0...

Patching component oracle.ctx.rsf, 12.1.0.2.0...

Patching component oracle.assistants.server, 12.1.0.2.0...

Patching component oracle.xdk.parser.java, 12.1.0.2.0...

Patching component oracle.xdk.rsf, 12.1.0.2.0...

Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...

Patching component oracle.swd.oui, 12.1.0.2.0...

Patching component oracle.ordim.server, 12.1.0.2.0...
Composite patch 30691015 successfully applied.
Log file location: /gridapp/app/oracle/product/grid12c/cfgtoollogs/opatch/opatch2020-06-17_14-15-56PM_1.log

OPatch succeeded.
11

9. Run prepatch.sh for DB_HOME:

This script is available under OCW patch directory.(30703508 patch)

Code/Command (click line numbers to comment):

1
2
3
oracle@dbhost-n1h$ /dumparea/APR2020BP/30805478/30703508/custom/scripts/prepatch.sh -dbhome /oracle/app/oracle/product/12.1.0.2/dbhome_1

/dumparea/APR2020BP/30805478/30703508/custom/scripts/prepatch.sh completed successfully.
12

10. Apply the patches to db_home:

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
oracle@dbhost-n1:...oduct/12.1.0.2/dbhome_1/OPatch$ ./opatch apply -oh /oracle/app/oracle/product/12.1.0.2/dbhome_1 -local /dumparea/APR2020BP/30805478/30691015
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.


Oracle Home       : /oracle/app/oracle/product/12.1.0.2/dbhome_1
Central Inventory : /gridapp/app/oraInventory
   from           : /oracle/app/oracle/product/12.1.0.2/dbhome_1/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /oracle/app/oracle/product/12.1.0.2/dbhome_1/cfgtoollogs/opatch/opatch2020-06-17_14-35-53PM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   29972716  30364137  30691015

Do you want to proceed? [y|n]
y
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/oracle/app/oracle/product/12.1.0.2/dbhome_1')


Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files...
Applying sub-patch '29972716' to OH '/oracle/app/oracle/product/12.1.0.2/dbhome_1'
ApplySession: Optional component(s) [ oracle.has.crs, 12.1.0.2.0 ]  not present in the Oracle Home or a higher version is found.

Patching component oracle.ldap.rsf, 12.1.0.2.0...

Patching component oracle.network.rsf, 12.1.0.2.0...

Patching component oracle.rdbms.rsf, 12.1.0.2.0...

Patching component oracle.rdbms, 12.1.0.2.0...

Patching component oracle.ctx, 12.1.0.2.0...

Patching component oracle.rdbms.deconfig, 12.1.0.2.0...

Patching component oracle.rdbms.rman, 12.1.0.2.0...

Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...

Patching component oracle.rdbms.util, 12.1.0.2.0...

Patching component oracle.rdbms.lbac, 12.1.0.2.0...

Patching component oracle.rdbms.crs, 12.1.0.2.0...

Patching component oracle.ldap.rsf.ic, 12.1.0.2.0...
Applying sub-patch '30364137' to OH '/oracle/app/oracle/product/12.1.0.2/dbhome_1'
ApplySession: Optional component(s) [ oracle.rdbms.drdaas, 12.1.0.2.0 ] , [ oracle.has.crs, 12.1.0.2.0 ] , [ oracle.rdbms.tg4tera, 12.1.0.2.0 ] , [ oracle.rdbms.tg4sybs, 12.1.0.2.0 ] , [ oracle.rdbms.tg4ifmx, 12.1.0.2.0 ] , [ oracle.rdbms.tg4db2, 12.1.0.2.0 ] , [ oracle.rdbms.tg4msql, 12.1.0.2.0 ]  not present in the Oracle Home or a higher version is found.

Patching component oracle.ldap.rsf, 12.1.0.2.0...

Patching component oracle.rdbms, 12.1.0.2.0...

Patching component oracle.rdbms.rsf, 12.1.0.2.0...

Patching component oracle.rdbms.util, 12.1.0.2.0...

Patching component oracle.ldap.rsf.ic, 12.1.0.2.0...

Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...

Patching component oracle.rdbms.rman, 12.1.0.2.0...

Patching component oracle.rdbms.oci, 12.1.0.2.0...

Patching component oracle.rdbms.crs, 12.1.0.2.0...

Patching component oracle.precomp.lang, 12.1.0.2.0...

Patching component oracle.precomp.common, 12.1.0.2.0...

Patching component oracle.rdbms.hsodbc, 12.1.0.2.0...
Applying sub-patch '30691015' to OH '/oracle/app/oracle/product/12.1.0.2/dbhome_1'

Patching component oracle.rdbms, 12.1.0.2.0...

Patching component oracle.network.rsf, 12.1.0.2.0...

Patching component oracle.rdbms.rsf, 12.1.0.2.0...

Patching component oracle.ldap.rsf, 12.1.0.2.0...

Patching component oracle.tfa, 12.1.0.2.0...

Patching component oracle.rdbms.rman, 12.1.0.2.0...

Patching component oracle.nlsrtl.rsf, 12.1.0.2.0...

Patching component oracle.ldap.rsf.ic, 12.1.0.2.0...

Patching component oracle.ctx.rsf, 12.1.0.2.0...

Patching component oracle.rdbms.dv, 12.1.0.2.0...

Patching component oracle.xdk, 12.1.0.2.0...

Patching component oracle.assistants.server, 12.1.0.2.0...

Patching component oracle.xdk.parser.java, 12.1.0.2.0...

Patching component oracle.oraolap, 12.1.0.2.0...

Patching component oracle.xdk.rsf, 12.1.0.2.0...

Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...

Patching component oracle.precomp.lang, 12.1.0.2.0...

Patching component oracle.precomp.common, 12.1.0.2.0...

Patching component oracle.swd.oui, 12.1.0.2.0...

Patching component oracle.ordim.server, 12.1.0.2.0...

Patching component oracle.ctx, 12.1.0.2.0...
Composite patch 30691015 successfully applied.
Sub-set patch [21463894] has become inactive due to the application of a super-set patch [30691015].
Sub-set patch [18747342] has become inactive due to the application of a super-set patch [30691015].
Please refer to Doc ID 2161861.1 for any possible further required actions.
Log file location: /oracle/app/oracle/product/12.1.0.2/dbhome_1/cfgtoollogs/opatch/opatch2020-06-17_14-35-53PM_1.log

OPatch succeeded.

oracle@dbhost-n1:...oduct/12.1.0.2/dbhome_1/OPatch$  ./opatch apply -oh /oracle/app/oracle/product/12.1.0.2/dbhome_1 -local /dumparea/APR2020BP/30805478/30703508
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.


Oracle Home       : /oracle/app/oracle/product/12.1.0.2/dbhome_1
Central Inventory : /gridapp/app/oraInventory
   from           : /oracle/app/oracle/product/12.1.0.2/dbhome_1/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.1.0.2.0
Log file location : /oracle/app/oracle/product/12.1.0.2/dbhome_1/cfgtoollogs/opatch/opatch2020-06-17_14-39-09PM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   30703508

Do you want to proceed? [y|n]
y
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/oracle/app/oracle/product/12.1.0.2/dbhome_1')


Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files...
Applying interim patch '30703508' to OH '/oracle/app/oracle/product/12.1.0.2/dbhome_1'
ApplySession: Optional component(s) [ oracle.has.crs, 12.1.0.2.0 ] , [ oracle.has.cvu, 12.1.0.2.0 ]  not present in the Oracle Home or a higher version is found.

Patching component oracle.rdbms, 12.1.0.2.0...

Patching component oracle.has.db, 12.1.0.2.0...

Patching component oracle.has.common, 12.1.0.2.0...

Patching component oracle.has.deconfig, 12.1.0.2.0...

Patching component oracle.has.common.cvu, 12.1.0.2.0...

Patching component oracle.has.rsf, 12.1.0.2.0...
Patch 30703508 successfully applied.
Sub-set patch [29509318] has become inactive due to the application of a super-set patch [30703508].
Please refer to Doc ID 2161861.1 for any possible further required actions.
Log file location: /oracle/app/oracle/product/12.1.0.2/dbhome_1/cfgtoollogs/opatch/opatch2020-06-17_14-39-09PM_1.log

OPatch succeeded.
13

11. Run the postpatch.sh script

12. Run the rootadd_rdbms.sh script:( as root user) 13. Run rootcrs.sh script post patch:

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
oracle@dbhost-n1:...oduct/12.1.0.2/dbhome_1/OPatch$ /dumparea/APR2020BP/30805478/30703508/custom/scripts/postpatch.sh -dbhome /oracle/app/oracle/product/12.1.0.2/dbhome_1
Reading /oracle/app/oracle/product/12.1.0.2/dbhome_1/install/params.ora..
Reading /oracle/app/oracle/product/12.1.0.2/dbhome_1/install/params.ora..
Found uninstantiated /oracle/app/oracle/product/12.1.0.2/dbhome_1/crs/sbs/srvctl.sbs file, copying to /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/srvctl
Parsing file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/srvctl
Parsing file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/srvconfig
Parsing file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/cluvfy
Parsing file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/kfod
Verifying file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/racgwrap
Skipping the missing file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/racgwrap
Verifying file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/srvctl
Verifying file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/srvconfig
Verifying file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/cluvfy
Verifying file /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/kfod
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/srvctl
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/srvconfig
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/cluvfy
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/kfod
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/diskmon.bin
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/lsnodes
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/osdbagrp
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/rawutl
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/srvm/admin/ractrans
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/srvm/admin/getcrshome
Reapplying file permissions on /oracle/app/oracle/product/12.1.0.2/dbhome_1/bin/crsdiag.pl
Postpatch completed successfully

root@dbhost-n1:~# /gridapp/app/oracle/product/grid12c/rdbms/install/rootadd_rdbms.sh

root@dbhost-n1:~# /gridapp/app/oracle/product/grid12c/crs/install/rootcrs.sh -postpatch
Using configuration parameter file: /gridapp/app/oracle/product/grid12c/crs/install/crsconfig_params
2020/06/17 14:41:17 CLSRSC-4015: Performing install or upgrade action for Oracle Trace File Analyzer (TFA) Collector.

2020/06/17 14:44:10 CLSRSC-4003: Successfully patched Oracle Trace File Analyzer (TFA) Collector.

2020/06/17 14:44:14 CLSRSC-329: Replacing Clusterware entries in file '/etc/inittab'

CRS-4123: Oracle High Availability Services has been started.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'dbhost-n1'
CRS-2677: Stop of 'ora.drivers.acfs' on 'dbhost-n1' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'dbhost-n1' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Starting Oracle High Availability Services-managed resources
CRS-2672: Attempting to start 'ora.evmd' on 'dbhost-n1'
CRS-2672: Attempting to start 'ora.mdnsd' on 'dbhost-n1'
CRS-2676: Start of 'ora.mdnsd' on 'dbhost-n1' succeeded
CRS-2676: Start of 'ora.evmd' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'dbhost-n1'
CRS-2676: Start of 'ora.gpnpd' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.gipcd' on 'dbhost-n1'
CRS-2676: Start of 'ora.gipcd' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'dbhost-n1'
CRS-2676: Start of 'ora.cssdmonitor' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'dbhost-n1'
CRS-2672: Attempting to start 'ora.diskmon' on 'dbhost-n1'
CRS-2676: Start of 'ora.diskmon' on 'dbhost-n1' succeeded
CRS-2676: Start of 'ora.cssd' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.cluster_interconnect.haip' on 'dbhost-n1'
CRS-2672: Attempting to start 'ora.ctssd' on 'dbhost-n1'
CRS-2676: Start of 'ora.ctssd' on 'dbhost-n1' succeeded
CRS-2676: Start of 'ora.cluster_interconnect.haip' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'dbhost-n1'
CRS-2676: Start of 'ora.asm' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.storage' on 'dbhost-n1'
CRS-2676: Start of 'ora.storage' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.crf' on 'dbhost-n1'
CRS-2676: Start of 'ora.crf' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.crsd' on 'dbhost-n1'
CRS-2676: Start of 'ora.crsd' on 'dbhost-n1' succeeded
CRS-6023: Starting Oracle Cluster Ready Services-managed resources
CRS-6017: Processing resource auto-start for servers: dbhost-n1
CRS-2672: Attempting to start 'ora.net1.network' on 'dbhost-n1'
CRS-2676: Start of 'ora.net1.network' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.ons' on 'dbhost-n1'
CRS-2673: Attempting to stop 'ora.dbhost-n1.vip' on 'dbhost-n2'
CRS-2677: Stop of 'ora.dbhost-n1.vip' on 'dbhost-n2' succeeded
CRS-2672: Attempting to start 'ora.dbhost-n1.vip' on 'dbhost-n1'
CRS-2676: Start of 'ora.ons' on 'dbhost-n1' succeeded
CRS-2673: Attempting to stop 'ora.LISTENER_SCAN1.lsnr' on 'dbhost-n2'
CRS-2677: Stop of 'ora.LISTENER_SCAN1.lsnr' on 'dbhost-n2' succeeded
CRS-2673: Attempting to stop 'ora.scan1.vip' on 'dbhost-n2'
CRS-2677: Stop of 'ora.scan1.vip' on 'dbhost-n2' succeeded
CRS-2672: Attempting to start 'ora.scan1.vip' on 'dbhost-n1'
CRS-2676: Start of 'ora.dbhost-n1.vip' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.LISTENER.lsnr' on 'dbhost-n1'
CRS-2672: Attempting to start 'ora.LISTENER_GSM.lsnr' on 'dbhost-n1'
CRS-2672: Attempting to start 'ora.LISTENER_TEST.lsnr' on 'dbhost-n1'
CRS-2676: Start of 'ora.LISTENER.lsnr' on 'dbhost-n1' succeeded
CRS-2676: Start of 'ora.LISTENER_TEST.lsnr' on 'dbhost-n1' succeeded
CRS-2676: Start of 'ora.LISTENER_GSM.lsnr' on 'dbhost-n1' succeeded
CRS-2676: Start of 'ora.scan1.vip' on 'dbhost-n1' succeeded
CRS-2672: Attempting to start 'ora.LISTENER_SCAN1.lsnr' on 'dbhost-n1'
CRS-2676: Start of 'ora.LISTENER_SCAN1.lsnr' on 'dbhost-n1' succeeded
CRS-6016: Resource auto-start has completed for server dbhost-n1
CRS-6024: Completed start of Oracle Cluster Ready Services-managed resources
CRS-4123: Oracle High Availability Services has been started.
Oracle Clusterware active version on the cluster is [12.1.0.2.0]. The cluster upgrade state is [NORMAL]. The cluster active patch level is [1679636340].

dbhost-n1     2020/06/17 14:46:54     /gridapp/app/oracle/product/grid12c/cdata/dbhost-n1/backup_20200617_144654.olr     1679636340

dbhost-n1     2017/05/03 17:15:15     /gridapp/app/oracle/product/grid12c/cdata/dbhost-n1/backup_20170503_171515.olr     0
14

12. Start db services:

Now patching activities on node1 ( dbhost-n1) has been completed. So proceed with same patching on node2 ( dbhost-n2). > NOTE – > PLEASE MAKE SURE YOU DO ALL THE ABOVE STEPS ON OTHER NODES AS WELL. NOTE – > PLEASE MAKE SURE YOU DO ALL THE ABOVE STEPS ON OTHER NODES AS WELL.

Code/Command (click line numbers to comment):

1
2
3
4
export ORACLE_HOME=/oracle/app/oracle/product/12.1.0.2/dbhome_1
export PATH=$ORACLE_HOME/bin:$PATH

srvctl stop home -o /oracle/app/oracle/product/12.1.0.2/dbhome_1 -s /dumparea/db_prepatch_stat.txt -n dbhost-n1
15

11. Run the datapatch utility.

Once all nodes GRID_HOME and DB_HOME has been patched, Run the datapatch script from DB_HOME. With this patching activity has been completed with manual method. You can check the inventory details as below. $ORACLE_HOME/OPatch/opatch lsinventory $GRID_HOME/OPatch/opatch lsinvenotry from db : select * from dba_registry_sqlpatch;

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
from node 1:
export ORACLE_HOME=/oracle/app/oracle/product/12.1.0.2/dbhome_1

cd $ORACLE_HOME/OPatch/
./datapatch -verbose

SQL> select patch_id,version,action,ACTION_TIME from dba_registry_sqlpatch order by ACTION_TIME desc;

  PATCH_ID VERSION              ACTION          ACTION_TIME
---------- -------------------- --------------- ---------------------------------------------------------------------------
  29496791 12.1.0.2             APPLY           16-JUN-20 05.29.28.229750 PM
  22674709 12.1.0.2             APPLY           16-JUN-20 05.29.27.650900 PM


  28487821 12.1.0.2             ROLLBACK        16-JUN-20 05.29.27.635975 PM
  28731800 12.1.0.2             APPLY           09-APR-19 10.05.40.703442 AM
  28487821 12.1.0.2             APPLY           13-SEP-18 10.54.26.749312 AM
  27547374 12.1.0.2             APPLY           29-AUG-18 09.53.53.069411 AM
  26925263 12.1.0.2             APPLY           11-APR-18 11.37.14.482368 AM
  26717470 12.1.0.2             APPLY           08-NOV-17 01.16.15.961195 PM
  25397136 12.1.0.2             APPLY           04-MAY-17 09.29.08.515045 AM

Comments (0)

Please to add comments

No comments yet. Be the first to comment!
