How to delete a node from oracle RAC 19C - DBACLASS DBACLASS

Steps to delete delete a node from oracle RAC. Run dbaca to delete to instance from node, then run deinstall -local and then run gridSetup.sh

oracle clusteringintermediate
by OracleDba
12 views
1

STEPS OVERVIEW:

- Precheck - Delete the instance from DBHOST4  using dbca - Deinstall the oracle database home from DBHOST4 - Deinstall grid infrastructure home from DBHOST4 - Delete clusterware config - Postcheck
2

check whether both the nodes were unpinned or not.

Code/Command (click line numbers to comment):

1
2
3
[oracle@DBHOST3 ~]$ <span style="color: #ff0000;"><strong>olsnodes -s -t</strong></span>
DBHOST3      Active  Unpinned
DBHOST4      Active  Unpinned
3

Check the cluster resources:

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
[oracle@DBHOST3 ~]$ <span style="color: #ff0000;"><strong>crsctl stat res -t</strong></span>
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.LISTENER.lsnr
               ONLINE  ONLINE       DBHOST3               STABLE
               ONLINE  ONLINE       DBHOST4               STABLE
ora.MGMT.GHCHKPT.advm
               OFFLINE OFFLINE      DBHOST3               STABLE
               OFFLINE OFFLINE      DBHOST4               STABLE
ora.chad
               ONLINE  ONLINE       DBHOST3               STABLE
               ONLINE  ONLINE       DBHOST4               STABLE
ora.helper
               OFFLINE OFFLINE      DBHOST3               STABLE
               OFFLINE OFFLINE      DBHOST4               IDLE,STABLE
ora.mgmt.ghchkpt.acfs
               OFFLINE OFFLINE      DBHOST3               STABLE
               OFFLINE OFFLINE      DBHOST4               STABLE
ora.net1.network
               ONLINE  ONLINE       DBHOST3               STABLE
               ONLINE  ONLINE       DBHOST4               STABLE
ora.ons
               ONLINE  ONLINE       DBHOST3               STABLE
               ONLINE  ONLINE       DBHOST4               STABLE
ora.proxy_advm
               OFFLINE OFFLINE      DBHOST3               STABLE
               OFFLINE OFFLINE      DBHOST4               STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ARCH.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  ONLINE       DBHOST4               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  ONLINE       DBHOST4               STABLE
      3        ONLINE  OFFLINE                               STABLE
ora.DATA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  ONLINE       DBHOST4               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       DBHOST4               STABLE
ora.LISTENER_SCAN2.lsnr
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.LISTENER_SCAN3.lsnr
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.MGMT.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  ONLINE       DBHOST4               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.OCRVD.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  ONLINE       DBHOST4               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.REDOA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  ONLINE       DBHOST4               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.REDOB.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  ONLINE       DBHOST4               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asm(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               Started,STABLE
      2        ONLINE  ONLINE       DBHOST4               Started,STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asmnet1.asmnetwork(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  ONLINE       DBHOST4               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.cvu
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.DBHOST3.vip
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.DBHOST4.vip
      1        ONLINE  ONLINE       DBHOST4               STABLE
ora.mgmtdb
      1        ONLINE  ONLINE       DBHOST4               Open,STABLE
<strong>ora.lrmprod.db
      1        ONLINE  ONLINE       DBHOST3               Open,HOME=/oracle/ap
                                                             p/oracle/product/19.
                                                             3.0/dbhome_1,STABLE
      2        ONLINE  ONLINE       DBHOST4               Open,HOME=/oracle/ap
                                                             p/oracle/product/19.
                                                             3.0/dbhome_1,STABLE
</strong>ora.qosmserver
      1        ONLINE  ONLINE       DBHOST4               STABLE
ora.rhpserver
      1        OFFLINE OFFLINE                               STABLE
ora.scan1.vip
      1        ONLINE  ONLINE       DBHOST4               STABLE
ora.scan2.vip
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.scan3.vip
      1        ONLINE  ONLINE       DBHOST3               STABLE
--------------------------------------------------------------------------------
4

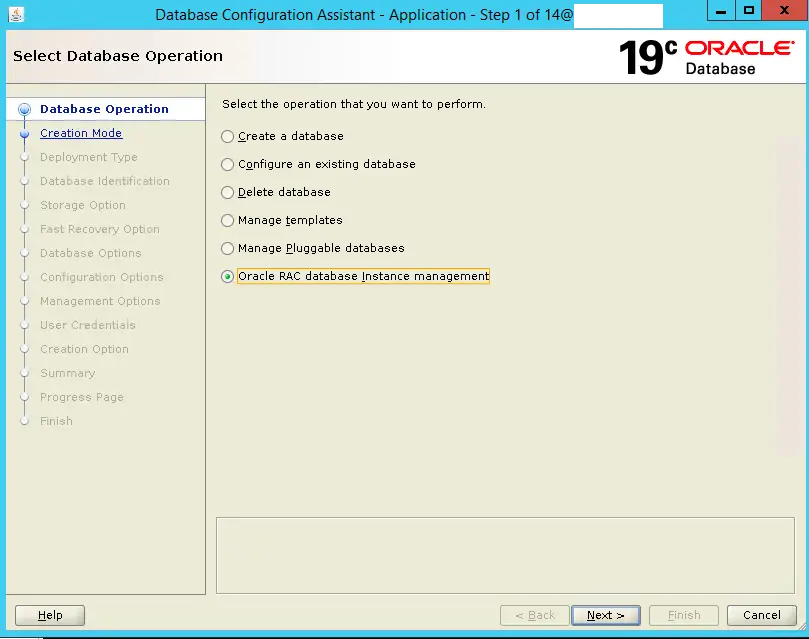

2. Delete oracle instance using dbca

If any database instance is running on the node, then this need to be removed before deinstalling grid. Run dbca from node1: [oracle@DBHOST03~] cd $ORACLE_HOME/bin [oracle@DBHOST03~] ./dbca Instance successfully deleted. Now proceed with deinstalling the oracle db home.
Step 4

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[oracle@DBHOST3 ~]$ <span style="color: #ff0000;"><strong> crsctl status resource -w "TYPE = ora.database.type" -t</strong></span>
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.lrmprod.db
      1        ONLINE  ONLINE       DBHOST3               Open,HOME=/oracle/ap
                                                             p/oracle/product/19.
                                                             3.0/dbhome_1,STABLE
<span style="color: #ff0000;"><strong>      2        ONLINE  ONLINE       DBHOST4               Open,HOME=/oracle/ap
                                                             p/oracle/product/19.
                                                             3.0/dbhome_1,STABLE
</strong></span>--------------------------------------------------------------------------------
5

3. DEINSTALL ORACLE DATABASE HOME:( RUN ON NODE2)

Few error like failed to delete directory got reported. We can delete those directories manually.

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
[oracle@DBHOST4]$ <span style="color: #ff0000;"><strong>cd $ORACLE_HOME/deinstall</strong></span>
[oracle@DBHOST4 deinstall]$<strong> ./deinstall -local</strong>
Checking for required files and bootstrapping ...
Please wait ...
Location of logs /tmp/deinstall2021-06-22_12-10-54PM/logs/

############ ORACLE DECONFIG TOOL START ############


######################### DECONFIG CHECK OPERATION START #########################
## [START] Install check configuration ##


Checking for existence of the Oracle home location /oracle/app/oracle/product/19.3.0/dbhome_1
Oracle Home type selected for deinstall is: Oracle Real Application Cluster Database
Oracle Base selected for deinstall is: /oracle/app/oracle
Checking for existence of central inventory location /crsapp/app/oraInventory
Checking for existence of the Oracle Grid Infrastructure home
The following nodes are part of this cluster: DBHOST4
Checking for sufficient temp space availability on node(s) : 'DBHOST4'

## [END] Install check configuration ##


Network Configuration check config START

Network de-configuration trace file location: /tmp/deinstall2021-06-22_12-10-54PM/logs/netdc_check2021-06-22_12-11-02PM.log

Network Configuration check config END

Database Check Configuration START

Database de-configuration trace file location: /tmp/deinstall2021-06-22_12-10-54PM/logs/databasedc_check2021-06-22_12-11-02PM.log

Use comma as separator when specifying list of values as input

Specify the list of database names that are configured locally on this node for this Oracle home. Local configurations of the discovered databases will be removed []:
Database Check Configuration END

######################### DECONFIG CHECK OPERATION END #########################


####################### DECONFIG CHECK OPERATION SUMMARY #######################
Oracle Grid Infrastructure Home is:
The following nodes are part of this cluster: DBHOST4
The cluster node(s) on which the Oracle home deinstallation will be performed are:DBHOST4
Oracle Home selected for deinstall is: /oracle/app/oracle/product/19.3.0/dbhome_1
Inventory Location where the Oracle home registered is: /crsapp/app/oraInventory
Do you want to continue (y - yes, n - no)? [n]: y
A log of this session will be written to: '/tmp/deinstall2021-06-22_12-10-54PM/logs/deinstall_deconfig2021-06-22_12-11-01-PM.out'
Any error messages from this session will be written to: '/tmp/deinstall2021-06-22_12-10-54PM/logs/deinstall_deconfig2021-06-22_12-11-01-PM.err'

######################## DECONFIG CLEAN OPERATION START ########################
Database de-configuration trace file location: /tmp/deinstall2021-06-22_12-10-54PM/logs/databasedc_clean2021-06-22_12-11-02PM.log

Network Configuration clean config START

Network de-configuration trace file location: /tmp/deinstall2021-06-22_12-10-54PM/logs/netdc_clean2021-06-22_12-11-02PM.log

Network Configuration clean config END


######################### DECONFIG CLEAN OPERATION END #########################


####################### DECONFIG CLEAN OPERATION SUMMARY #######################
#######################################################################


############# ORACLE DECONFIG TOOL END #############

Using properties file /tmp/deinstall2021-06-22_12-10-54PM/response/deinstall_2021-06-22_12-11-01-PM.rsp
Location of logs /tmp/deinstall2021-06-22_12-10-54PM/logs/

############ ORACLE DEINSTALL TOOL START ############





####################### DEINSTALL CHECK OPERATION SUMMARY #######################
A log of this session will be written to: '/tmp/deinstall2021-06-22_12-10-54PM/logs/deinstall_deconfig2021-06-22_12-11-01-PM.out'
Any error messages from this session will be written to: '/tmp/deinstall2021-06-22_12-10-54PM/logs/deinstall_deconfig2021-06-22_12-11-01-PM.err'

######################## DEINSTALL CLEAN OPERATION START ########################
## [START] Preparing for Deinstall ##
Setting LOCAL_NODE to DBHOST4
Setting CLUSTER_NODES to DBHOST4
Setting CRS_HOME to false
Setting oracle.installer.invPtrLoc to /tmp/deinstall2021-06-22_12-10-54PM/oraInst.loc
Setting oracle.installer.local to true

## [END] Preparing for Deinstall ##

Setting the force flag to false
Setting the force flag to cleanup the Oracle Base
Oracle Universal Installer clean START

Detach Oracle home '/oracle/app/oracle/product/19.3.0/dbhome_1' from the central inventory on the local node : Done

Failed to delete the directory '/oracle/app/oracle/product/19.3.0/dbhome_1/cfgtoollogs/opatchautodb/driver/2021-06-21-14-26-25/machine-readable'. Either user has no permission to delete or it is in use.
Failed to delete the directory '/oracle/app/oracle/product/19.3.0/dbhome_1/cfgtoollogs/opatchautodb/driver/2021-06-21-14-26-25/.tmp'. Either user has no permission to delete or it is in use.
Delete directory '/oracle/app/oracle/product/19.3.0/dbhome_1' on the local node : Failed <<<<

Delete directory '/crsapp/app/oraInventory' on the local node : Done

Failed to delete the directory '/oracle/app/oracle'. The directory is not empty.
Delete directory '/oracle/app/oracle' on the local node : Failed <<<<

Oracle Universal Installer cleanup completed with errors.

Oracle Universal Installer clean END


## [START] Oracle install clean ##


## [END] Oracle install clean ##


######################### DEINSTALL CLEAN OPERATION END #########################


####################### DEINSTALL CLEAN OPERATION SUMMARY #######################
Successfully detached Oracle home '/oracle/app/oracle/product/19.3.0/dbhome_1' from the central inventory on the local node.
Failed to delete directory '/oracle/app/oracle/product/19.3.0/dbhome_1' on the local node due to error : Either user has no permission to delete or file is in use.
Review the permissions and manually delete '/oracle/app/oracle/product/19.3.0/dbhome_1' on local node.
<span style="color: #ff0000;">Failed to delete directory '/oracle/app/oracle' on the local node due to error : Either user has no permission to delete or file is in use.
Review the permissions and manually delete '/oracle/app/oracle' on local node.
Oracle Universal Installer cleanup completed with errors.
</span>

<span style="color: #ff0000;">Run 'rm -r /etc/oraInst.loc' as root on node(s) 'DBHOST4' at the end of the session.

Run 'rm -r /opt/ORCLfmap' as root on node(s) 'DBHOST4' at the end of the session.
</span>Review the permissions and contents of '/oracle/app/oracle' on nodes(s) 'DBHOST4'.
If there are no Oracle home(s) associated with '/oracle/app/oracle', manually delete '/oracle/app/oracle' and its contents.
Oracle deinstall tool successfully cleaned up temporary directories.
#######################################################################


############# ORACLE DEINSTALL TOOL END #############


[oracle@DBHOST4 deinstall]$
6

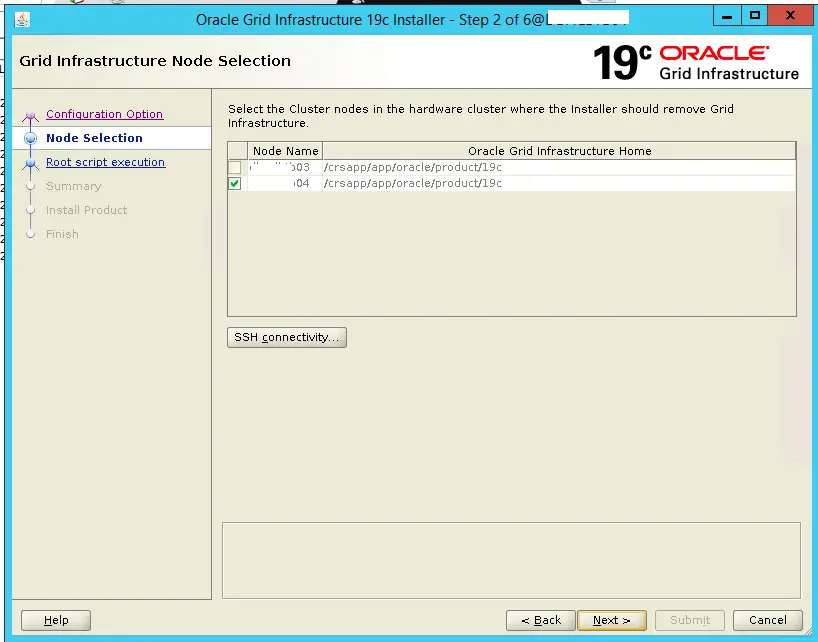

4. DEINSTALL GRID HOME USING GRIDSETUP.SH ( Run from node 1)

[oracle@DBHOST3] cd $GRID_HOME [oracle@DBHOST3] ./gridSetup.sh RUN ON NODE2:
Step 6

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
[root@DBHOST4 ~]# <span style="color: #ff0000;"><strong>/crsapp/app/oracle/product/19c/crs/install/rootdeinstall.sh</strong></span>
Using configuration parameter file: /tmp/deinstall_OraGI19Home1.rsp
The log of current session can be found at:
  /crsapp/app/oraInventory/logs/crsdeconfig_DBHOST4_2021-06-22_12-02-56AM.log
Redirecting to /bin/systemctl restart rsyslog.service
2021/06/22 12:04:18 CLSRSC-4006: Removing Oracle Trace File Analyzer (TFA) Collector.
2021/06/22 12:04:18 CLSRSC-4007: Successfully removed Oracle Trace File Analyzer (TFA) Collector.
2021/06/22 12:04:19 CLSRSC-336: Successfully deconfigured Oracle Clusterware stack on this node
Checking for required files and bootstrapping ...
Please wait ...
Using properties file /tmp/deinstall_OraGI19Home1.rsp
Location of logs /crsapp/app/oraInventory/logs/

############ ORACLE DEINSTALL TOOL START ############

A log of this session will be written to: '/crsapp/app/oraInventory/logs/deinstall_deconfig2021-06-22_12-04-29-PM.out'
Any error messages from this session will be written to: '/crsapp/app/oraInventory/logs/deinstall_deconfig2021-06-22_12-04-29-PM.err'

######################## DEINSTALL CLEAN OPERATION START ########################
## [START] Preparing for Deinstall ##
Setting LOCAL_NODE to DBHOST4
Setting CLUSTER_NODES to DBHOST4
Setting CRS_HOME to true
Setting oracle.installer.invPtrLoc to /tmp/deinstall2021-06-22_12-04-22PM/oraInst.loc
Setting oracle.installer.local to true

## [END] Preparing for Deinstall ##

Setting the force flag to false
Setting the force flag to cleanup the Oracle Base
Oracle Universal Installer clean START

Detach Oracle home '/crsapp/app/oracle/product/19c' from the central inventory on the local node : Done

Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps/tfa/jet/v6.0.0'. Either user has no permission to delete or it is in use.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps/tfa/jet'. The directory is not empty.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps/tfa/css/fonts'. Either user has no permission to delete or it is in use.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps/tfa/css/images'. Either user has no permission to delete or it is in use.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps/tfa/css/rat'. Either user has no permission to delete or it is in use.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps/tfa/css/site'. Either user has no permission to delete or it is in use.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps/tfa/css/codeMirror'. Either user has no permission to delete or it is in use.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps/tfa/css'. The directory is not empty.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps/tfa'. The directory is not empty.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat/webapps'. The directory is not empty.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home/tomcat'. The directory is not empty.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4/tfa_home'. The directory is not empty.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa/DBHOST4'. The directory is not empty.
Failed to delete the directory '/crsapp/app/oracle/product/19c/tfa'. The directory is not empty.
Failed to delete the directory '/crsapp/app/oracle/product/19c'. The directory is not empty.
Delete directory '/crsapp/app/oracle/product/19c' on the local node : Failed <<<<

Failed to delete the directory '/crsapp/app/oracle_base/tfa'. Either user has no permission to delete or it is in use.
Failed to delete the directory '/crsapp/app/oracle_base/oracle.ahf'. Either user has no permission to delete or it is in use.
Failed to delete the directory '/crsapp/app/oracle_base'. The directory is not empty.
Delete directory '/crsapp/app/oracle_base' on the local node : Failed <<<<

Oracle Universal Installer cleanup completed with errors.

Oracle Universal Installer clean END


## [START] Oracle install clean ##


## [END] Oracle install clean ##


######################### DEINSTALL CLEAN OPERATION END #########################


####################### DEINSTALL CLEAN OPERATION SUMMARY #######################
Successfully detached Oracle home '/crsapp/app/oracle/product/19c' from the central inventory on the local node.
Failed to delete directory '/crsapp/app/oracle/product/19c' on the local node due to error : Either user has no permission to delete or file is in use.
Review the permissions and manually delete '/crsapp/app/oracle/product/19c' on local node.
Failed to delete directory '/crsapp/app/oracle_base' on the local node due to error : Either user has no permission to delete or file is in use.
Review the permissions and manually delete '/crsapp/app/oracle_base' on local node.
Oracle Universal Installer cleanup completed with errors.

Review the permissions and contents of '/crsapp/app/oracle_base' on nodes(s) 'DBHOST4'.
If there are no Oracle home(s) associated with '/crsapp/app/oracle_base', manually delete '/crsapp/app/oracle_base' and its contents.
Oracle deinstall tool successfully cleaned up temporary directories.
#######################################################################


############# ORACLE DEINSTALL TOOL END #############
7

5. Delete clusterware config  [ run  From node 1]

Delete remaining directories: Deinstall script might fail to delete few file/directories. So we can delete them manually.

Code/Command (click line numbers to comment):

1
2
3
4
5
6
-- as root user run below command from node 1
[root@DBHOST3 ~]# <span style="color: #ff0000;"><strong>/crsapp/app/oracle/product/19c/bin/crsctl delete node -n DBHOST4</strong></span>
CRS-4661: Node DBHOST4 successfully deleted.

rm -rf /crsapp/app/oracle/product/19c
rm -rf /crsapp/app/oracle_base
8

6. POSTCHECK:

Run cluvfy postcheck script Check updated cluster resource: We have successfully removed a node from the multinode grid.

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
[oracle@DBHOST3 ~]$<span style="color: #ff0000;"><strong> cluvfy stage -post nodedel -n DBHOST4 -verbose</strong></span>

Verifying Node Removal ...
  Verifying CRS Integrity ...PASSED
  Verifying Clusterware Version Consistency ...PASSED
Verifying Node Removal ...PASSED

Post-check for node removal was successful.

CVU operation performed:      stage -post nodedel
Date:                         Jun 22, 2021 12:08:38 PM
CVU home:                     /crsapp/app/oracle/product/19c/
User:                         oracle
[oracle@DBHOST3 ~]$

[oracle@DBHOST3 ~]$ <strong>crsctl stat res -t</strong>
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.LISTENER.lsnr
               ONLINE  ONLINE       DBHOST3               STABLE
ora.MGMT.GHCHKPT.advm
               OFFLINE OFFLINE      DBHOST3               STABLE
ora.chad
               ONLINE  ONLINE       DBHOST3               STABLE
ora.helper
               OFFLINE OFFLINE      DBHOST3               STABLE
ora.mgmt.ghchkpt.acfs
               OFFLINE OFFLINE      DBHOST3               STABLE
ora.net1.network
               ONLINE  ONLINE       DBHOST3               STABLE
ora.ons
               ONLINE  ONLINE       DBHOST3               STABLE
ora.proxy_advm
               OFFLINE OFFLINE      DBHOST3               STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ARCH.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  OFFLINE                               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  OFFLINE                               STABLE
      3        ONLINE  OFFLINE                               STABLE
ora.DATA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  OFFLINE                               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.LISTENER_SCAN2.lsnr
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.LISTENER_SCAN3.lsnr
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.MGMT.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  OFFLINE                               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.OCRVD.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  OFFLINE                               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.REDOA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  OFFLINE                               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.REDOB.dg(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  OFFLINE                               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asm(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               Started,STABLE
      2        ONLINE  OFFLINE                               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asmnet1.asmnetwork(ora.asmgroup)
      1        ONLINE  ONLINE       DBHOST3               STABLE
      2        ONLINE  OFFLINE                               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.cvu
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.DBHOST3.vip
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.mgmtdb
      1        ONLINE  ONLINE       DBHOST3               Open,STABLE
ora.lrmprod.db
      1        ONLINE  ONLINE       DBHOST3               Open,HOME=/oracle/ap
                                                             p/oracle/product/19.
                                                             3.0/dbhome_1,STABLE
ora.qosmserver
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.rhpserver
      1        OFFLINE OFFLINE                               STABLE
ora.scan1.vip
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.scan2.vip
      1        ONLINE  ONLINE       DBHOST3               STABLE
ora.scan3.vip
      1        ONLINE  ONLINE       DBHOST3               STABLE
--------------------------------------------------------------------------------

Comments (0)

Please to add comments

No comments yet. Be the first to comment!
