Install Oracle 18c Release 3 on RHEL 6.8

Install Oracle 18c Release 3 on RHEL 6.8 Pre-requisites already been taken care like memory, swap, kernel parameters, add groups, profile and users…etc Contents

oracle Oracle 18cinstallationintermediate
by OracleDba
12 views
1

Pre-requisites already been taken care like memory, swap, kernel parameters, add groups, profile and users…etc

Contents 2. Verify OS version 3. Unzip 18c Binaries 4. Set the DISPLAY Environment Log into the oracle user. If you are using X emulation then set the DISPLAY environmental variable. 5. Invoke ./runInstaller 6. Verify Caution : Your use of any information or materials on this website is entirely at your own risk. It is provided for educational purposes only. It has been tested internally, however, we do not guarantee that it will work for you. Ensure that you run it in your test environment before using.
Step 1

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
The first thing we need to verify the hardware requirements for an Oracle 18c Release 3
— Check Physical RAM.
#
grep MemTotal /proc/meminfo
We need at least
8192 MB
of physical RAM.
<----
— Check Swap Space.
#
grep SwapTotal /proc/meminfo/*
RAM up to 1024MB then swap = 2 times the size of RAM
RAM between 2049MB and 8192MB then swap = equal to the size of RAM
RAM more than 8192MB then swap size = 0.75 times the size of RAM
We need at least 8192 MB of swap <----
-– Check space available in /tmp
# df -h /tmp/*
You need to have at least
2048 MB
of space in the /tmp directory.
<---
-– Check space for Oracle Software and pre-configured database.
#
df -h
Space requirement for Oracle 18c Software:
Enterprise Edition 14G
<----
—- To determine whether the system architecture can run the software, enter the following command:
#
grep "model name" /proc/cpuinfo
This command displays the processor type. Verify that the processor architecture matches the Oracle software release that you want to install. If you do not see the expected output, then you cannot install the software on this system.

[oracle@rac1 product]$
cat /etc/redhat-release
Red Hat Enterprise Linux Server release 6.8 (Santiago)
[oracle@rac1 product]$

NOTE: You can't edit oracle home location while installation using OUI. It will pickup automatically ORACLE HOME location, where you have unzipped database binaries. Hence directly unzip in ORACLE HOME location and then start ./runInstaller
After unzip, it will
NOT
keep all files in single directory.
[oracle@rac1 ]
cd /u02/app/oracle/product/18c
[oracle@rac1 18c]$ ls -ltr
total 4457672
-rw-r--r--. 1 oracle dba 4564649047 Jul 25 20:26
LINUX.X64_180000_db_home.zip
[oracle@rac1 18c]$

[oracle@rac1 18c]$
unzip LINUX.X64_180000_db_home.zip
[oracle@rac1 18c]$ ls -ltr
total 4457972
-rw-r--r--.  1 oracle dba        852 Aug 18  2015 env.ora
-rw-r--r--.  1 oracle dba       2927 Oct 14  2016 schagent.conf
-rwxr-x---.  1 oracle dba       1783 Mar  8  2017
runInstaller <----
drwxr-x---.  7 oracle dba       4096 Feb  7 23:11 xdk
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 wwg
drwxr-xr-x.  4 oracle dba       4096 Feb  7 23:11 usm
drwxr-xr-x.  5 oracle dba       4096 Feb  7 23:11 suptools
drwxr-xr-x.  6 oracle dba       4096 Feb  7 23:11 srvm
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 sqlj
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 slax
-rw-r-----.  1 oracle dba         10 Feb  7 23:11 root.sh.old.1
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 relnotes
drwxr-xr-x.  4 oracle dba       4096 Feb  7 23:11 racg
drwxr-xr-x.  5 oracle dba       4096 Feb  7 23:11 R
drwxr-xr-x.  4 oracle dba       4096 Feb  7 23:11 owm
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 oss
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 ordim
drwxr-xr-x.  4 oracle dba       4096 Feb  7 23:11 oracore
drwxr-xr-x.  5 oracle dba       4096 Feb  7 23:11 olap
drwxr-xr-x.  4 oracle dba       4096 Feb  7 23:11 mgw
drwxr-xr-x.  2 oracle dba       4096 Feb  7 23:11 log
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 has
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 dv
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 diagnostics
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 dbjava
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 data
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:11 css
drwxr-xr-x.  6 oracle dba       4096 Feb  7 23:12 plsql
drwxr-xr-x.  2 oracle dba       4096 Feb  7 23:12 dbs
drwxr-xr-x.  2 oracle dba       4096 Feb  7 23:12 utl
drwxr-xr-x.  2 oracle dba       4096 Feb  7 23:12 instantclient
drwxr-xr-x. 13 oracle dba       4096 Feb  7 23:12 dmu
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:12 ucp
drwxr-xr-x.  3 oracle dba       4096 Feb  7 23:12 jdbc
drwxr-xr-x.  2 oracle dba       4096 Feb  7 23:12 QOpatch
drwxr-xr-x.  4 oracle dba       4096 Feb  7 23:12 ords
drwxr-xr-x.  5 oracle dba       4096 Feb  7 23:13 sdk
drwxr-xr-x.  6 oracle dba       4096 Feb  7 23:13 apex
drwxr-xr-x. 22 oracle dba       4096 Feb  7 23:13 sqldeveloper
drwxr-xr-x.  8 oracle dba       4096 Feb  7 23:13 odbc
drwxr-xr-x. 11 oracle dba       4096 Feb  7 23:14 ctx
-rwx------.  1 oracle dba        786 Feb  7 23:14 root.sh.old
drwxr-x---. 14 oracle dba       4096 Jun  4 03:20 OPatch
drwxr-xr-x.  6 oracle dba       4096 Jul 18 19:17 sqlplus
-rwx------.  1 oracle dba        638 Jul 18 19:18 root.sh
drwxr-xr-x.  2 oracle dba       4096 Jul 18 19:39 jlib
drwxr-xr-x.  5 oracle dba       4096 Jul 18 19:41 sqlpatch
drwxr-xr-x.  7 oracle dba       4096 Jul 18 19:44 jdk
drwxr-xr-x. 13 oracle dba       4096 Jul 18 19:44 rdbms
drwxr-xr-x.  6 oracle dba       4096 Jul 18 19:44 precomp
drwxr-xr-x.  5 oracle dba       4096 Jul 18 19:44 perl
drwxr-xr-x.  7 oracle dba       4096 Jul 18 19:44 ord
drwxr-xr-x.  7 oracle dba       4096 Jul 18 19:44 opmn
drwxr-xr-x.  5 oracle dba       4096 Jul 18 19:44 nls
drwxr-xr-x. 10 oracle dba       4096 Jul 18 19:44 network
drwxr-xr-x.  9 oracle dba       4096 Jul 18 19:44 md
drwxr-xr-x. 10 oracle dba       4096 Jul 18 19:44 ldap
drwxr-xr-x.  8 oracle dba       4096 Jul 18 19:44 javavm
drwxr-xr-x.  5 oracle dba       4096 Jul 18 19:44 hs
drwxr-xr-x.  4 oracle dba       4096 Jul 18 19:44 drdaas
drwxr-xr-x.  3 oracle dba       4096 Jul 18 19:44 demo
drwxr-xr-x.  7 oracle dba       4096 Jul 18 19:44 cv
drwxr-xr-x.  6 oracle dba       4096 Jul 18 19:44 crs
drwxr-xr-x.  9 oracle dba       4096 Jul 18 19:44 assistants
drwxr-xr-x.  8 oracle dba       4096 Jul 18 19:44 oui
drwxr-xr-x.  3 oracle dba      16384 Jul 18 19:44 lib
drwxr-x---. 13 oracle dba       4096 Jul 18 19:44 inventory
drwxr-xr-x.  5 oracle dba       4096 Jul 18 19:44 deinstall
drwxr-xr-x.  4 oracle dba       4096 Jul 18 19:44 clone
drwxr-xr-x.  2 oracle dba       4096 Jul 18 19:44 bin
drwxr-xr-x.  2 oracle dba       4096 Jul 18 19:44 addnode
drwxr-xr-x. 10 oracle dba       4096 Jul 18 19:53 install
-rw-r--r--.  1 oracle dba 4564649047 Jul 25 20:26 LINUX.X64_180000_db_home.zip
[oracle@rac1 18c]$

export DISPLAY=192.168.2.3:0.0;

Start the Oracle Universal Installer (OUI) by issuing the following command.
[oracle@rac1 ~]$
cd /u02/app/oracle/product/18c/
[oracle@rac1 18c]$
./runInstaller
<-----

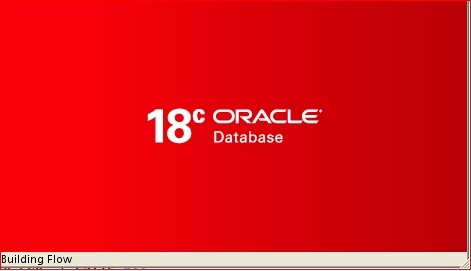

Launching Oracle Database Setup Wizard...

[oracle@rac1 bin]$
export ORACLE_HOME=/u02/app/oracle/product/18c
[oracle@rac1 bin]$
./sqlplus
SQL*Plus: Release 18.0.0.0.0 - Production on Fri Jul 27 13:16:55 2018
Version 18.3.0.0.0
Copyright (c) 1982, 2018, Oracle.  All rights reserved.

Enter user-name:
