Oracle Enterprise Manager Cloud Control 13c Release 3 (13.3.0.0) Installation on Oracle Linux 64 bit
123456789101112
Oracle Enterprise Manager is a system management tool which provides an integrated solution for managing your heterogeneous environment. It combines a graphical console, agents, common services, and tools to provide an integrated, comprehensive systems management platform for managing Oracle products.
Platform : Linuxx86_64, Linux 7
Server IP : 192.168.2.10
OEM Version : 13c Release 3 (13.3.0.0)
OMS HOME : /u01/app/oracle/middleware
Agent HOME : /u01/app/oracle/agent
DB ORACLE_HOME : /u01/app/oracle/product/19.0.0/dbhome_1
Repository DB Name : OEMSTAR
Repository DB Version : 19.3.0.0.0
OMS Binary Owner : oracle:oinstall
DB Binary Owner : oracle:oinstall
1

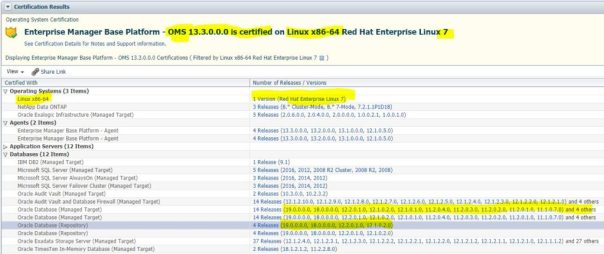

Enterprise Manager Base Platform - OMS 13.3.0.0.0 is certified on Linux x86-64 Red Hat Enterprise Linux 7
123

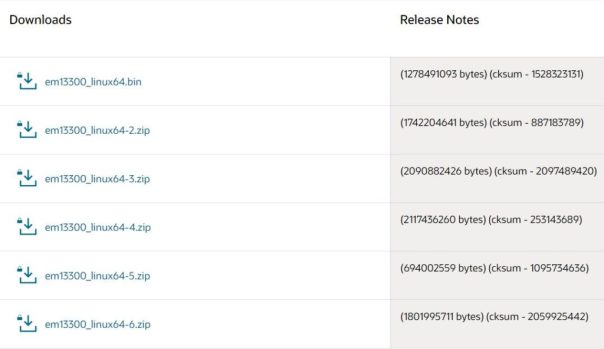

https://www.oracle.com/enterprise-manager/downloads/linux-x86-64-13c-rel3-downloads.html
https://www.oracle.com/database/technologies/oracle19c-linux-downloads.html
12
Please find the sample doc below.
http://www.br8dba.com/install-19c/
12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758596061626364656667686970717273747576777879808182
[oracle@rac1 database]$
cd /u01/app/oracle/product/19.0.0/dbhome_1/bin/
[oracle@rac1 bin]$

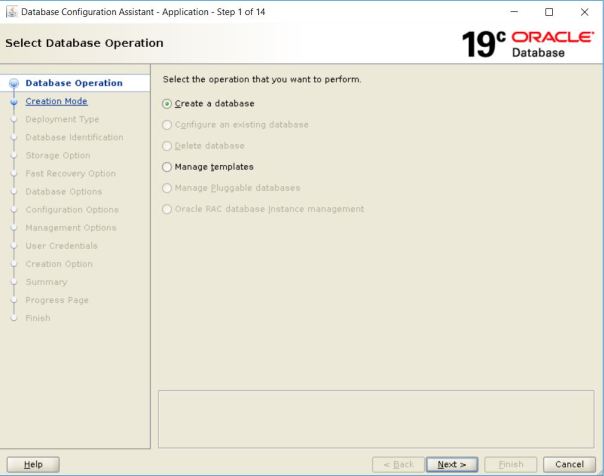

./dbca
-- Connection Verification
[oracle@oem ~]$
sqlplus sys@OEMSTAR as sysdba
Copyright (c) 1982, 2019, Oracle. All rights reserved.
Enter password:
Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0
SQL>
Recommended parameter changes for 19c repository database.
SQL> select name,open_mode from v$database;
NAME OPEN_MODE
--------- --------------------
OEMSTAR READ WRITE
SQL>
SQL> alter system set "_allow_insert_with_update_check"=true scope=both;
System altered.
SQL> alter system set session_cached_cursors=200 scope=spfile;
System altered.
SQL> alter system set shared_pool_size=600M scope=spfile;
System altered.
SQL> alter system set processes=600 scope=spfile;
System altered.
SQL>
SQL> shut immediate;
Database closed.
Database dismounted.
ORACLE instance shut down.
SQL> startup;
ORACLE instance started.
Total System Global Area 2432695144 bytes
Fixed Size 8899432 bytes
Variable Size 536870912 bytes
Database Buffers 1879048192 bytes
Redo Buffers 7876608 bytes
Database mounted.
Database opened.
SQL>
SQL> show parameter session_cached_cursors
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
session_cached_cursors
integer
200
SQL>
SQL> show parameter "
_allow_insert_with_update_check
"
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
_allow_insert_with_update_check boolean
TRUE
SQL>
SQL> show parameter
shared_pool_size
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
shared_pool_size big integer
608M
SQL>
SQL> show parameter processes
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
processes integer
600
SQL>
12345678910111213141516171819202122232425262728
No need to unzip the software.
[oracle@rac1 ~]$
mkdir -p /u01/app/oracle/middleware
[oracle@rac1 ~]$
mkdir -p /u01/app/oracle/agent
[oracle@rac1 backup]$ ls -ltr
-rw-r--r--. 1 oracle oinstall 694002559 Jul 10 19:13
em13300_linux64-5.zip
-rwxr--r--. 1 oracle oinstall 1278491093 Jul 10 19:15
em13300_linux64.bin
-rw-r--r--. 1 oracle oinstall 1742204641 Jul 10 19:17
em13300_linux64-2.zip
-rw-r--r--. 1 oracle oinstall 1801995711 Jul 10 19:17
em13300_linux64-6.zip
-rw-r--r--. 1 oracle oinstall 2090882426 Jul 10 19:18
em13300_linux64-3.zip
-rw-r--r--. 1 oracle oinstall 2117436260 Jul 10 19:18
em13300_linux64-4.zip
[oracle@rac1 backup]$
[oracle@rac1 backup]$

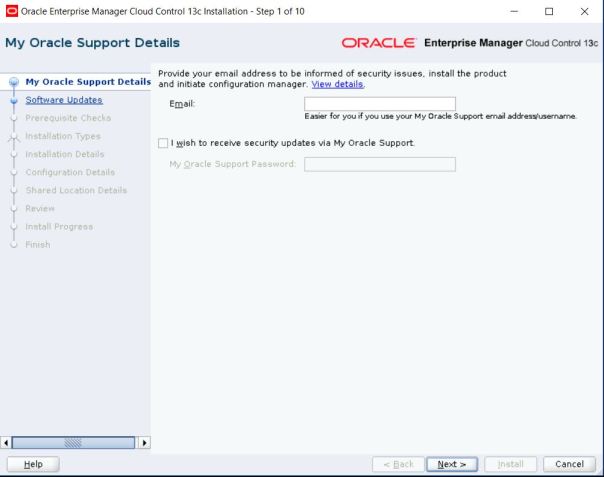

./em13300_linux64.bin
** The directory "/tmp" does not have enough space. At least 12289 MB of free space are required.
Please input another directory or [Exit]:
/u01/app/oracle/backup
0%.........................................................................100%
Starting Oracle Universal Installer
12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758596061626364656667686970717273747576777879

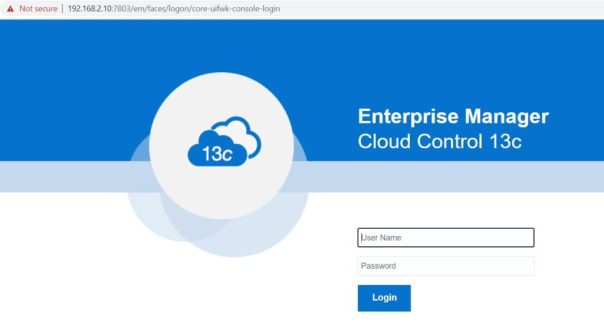

https://oem.rajasekhar.com:7803/em
#Stop OMS
[oracle@oem ~]$
export OMS_HOME=/u01/app/oracle/middleware
[oracle@oem ~]$
/u01/app/oracle/middleware/bin/emctl stop oms -all
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.
Stopping Oracle Management Server...
WebTier Successfully Stopped
Oracle Management Server Successfully Stopped
Oracle Management Server is Down
JVMD Engine is Down
BI Publisher is disabled, to enable BI Publisher on this host, use the 'emctl config oms -enable_bip' command
Stopping BI Publisher Server...
BI Publisher Server Already Stopped
BI Publisher is disabled, to enable BI Publisher on this host, use the 'emctl config oms -enable_bip' command
AdminServer Successfully Stopped
BI Publisher Server is Down
BI Publisher is disabled, to enable BI Publisher on this host, use the 'emctl config oms -enable_bip' command
[oracle@oem ~]$
#Stop Agent
[oracle@oem ~]$
export AGENT_HOME=/u01/app/oracle/agent/agent_inst
[oracle@oem ~]$
/u01/app/oracle/agent/agent_inst/bin/emctl stop agent
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.
Stopping agent ... stopped.
[oracle@oem ~]$
# Stop Database
[oracle@oem ~]$
. oraenv
ORACLE_SID = [
oemstar
] ?
The Oracle base remains unchanged with value /u01/app/oracle
[oracle@oem ~]$
sqlplus / as sysdba
SQL*Plus: Release 19.0.0.0.0 - Production on Sat Jul 11 21:23:46 2020
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle. All rights reserved.
Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0
SQL>
select name,open_mode from v$database;
NAME OPEN_MODE
--------- --------------------
OEMSTAR READ WRITE
SQL>
shut immediate;
Database closed.
Database dismounted.
ORACLE instance shut down.
SQL>
[oracle@oem ~]$
ps -ef | grep tns
root 22 2 0 19:55 ? 00:00:00 [netns]
oracle 5025 9474 0 21:24 pts/0 00:00:00 grep --color=auto tns
oracle 20522 1 0 20:48 ? 00:00:00 /u01/app/oracle/product/19.0.0/dbhome_1/bin/tnslsnr OEMSTAR -inherit
[oracle@oem ~]$
[oracle@oem ~]$
lsnrctl stop OEMSTAR
LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 11-JUL-2020 21:25:08
Copyright (c) 1991, 2019, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=oem.rajasekhar.com)(PORT=1522)))
The command completed successfully
[oracle@oem ~]$
[oracle@oem ~]$12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758596061626364656667686970717273747576777879808182
# Start Database
[oracle@oem ~]$
. oraenv
ORACLE_SID = [oracle] ?
oemstar
The Oracle base has been set to /u01/app/oracle
[oracle@oem ~]$ sqlplus
SQL*Plus: Release 19.0.0.0.0 - Production on Sat Jul 11 20:17:38 2020
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle. All rights reserved.
Enter user-name: / as sysdba
Connected to an idle instance.
SQL>
startup;
ORACLE instance started.
Total System Global Area 2432695144 bytes
Fixed Size 8899432 bytes
Variable Size 1090519040 bytes
Database Buffers 1325400064 bytes
Redo Buffers 7876608 bytes
Database mounted.
Database opened.
SQL>
[oracle@oem ~]$
lsnrctl start OEMSTAR
[oracle@oem ~]$
lsnrctl status OEMSTAR
LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 11-JUL-2020 20:48:59
Copyright (c) 1991, 2019, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=oem.rajasekhar.com)(PORT=1522)))
STATUS of the LISTENER
------------------------
Alias OEMSTAR
Version TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date 11-JUL-2020 20:48:21
Uptime 0 days 0 hr. 0 min. 38 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File /u01/app/oracle/product/19.0.0/dbhome_1/network/admin/listener.ora
Listener Log File /u01/app/oracle/diag/tnslsnr/oem/oemstar/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=oem.rajasekhar.com)(PORT=1522)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1522)))
Services Summary...
Service "
oemstar
.rajasekhar.com" has 1 instance(s).
Instance "oemstar", status READY, has 1 handler(s) for this service...
Service "oemstarXDB.rajasekhar.com" has 1 instance(s).
Instance "oemstar", status READY, has 1 handler(s) for this service...
The command completed successfully
[oracle@oem ~]$
#Start OMS
[oracle@oem ~]$
export OMS_HOME=/u01/app/oracle/middleware
[oracle@oem ~]$
/u01/app/oracle/middleware/bin/emctl start oms
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.
Starting Oracle Management Server...
WebTier Successfully Started
Oracle Management Server Successfully Started
Oracle Management Server is Up
JVMD Engine is Up
[oracle@oem ~]$
#Start Agent
[oracle@oem ~]$
/u01/app/oracle/agent/agent_inst/bin/emctl start agent
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.
Starting agent ................................................................... started.
[oracle@oem ~]$Please to add comments
