Upgrade grid infrastructure to 19C oracle from oracle 12c DBACLASS

Easy steps for upgrading your grid infrastructure from oracle 12c to 19c. Download and unzip the software at new 19c home location and gridsetup.sh script.

oracle clusteringintermediate
by OracleDba
15 views
1

PRECHECKS:

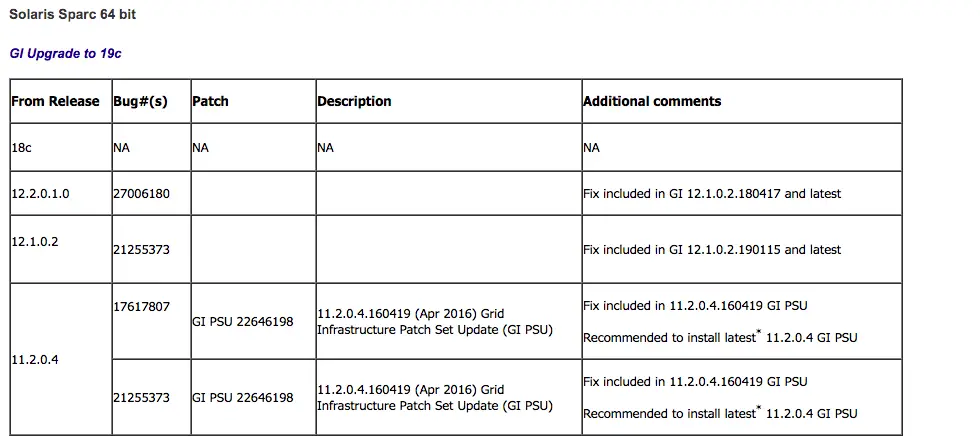

- Apply required patches to your existing 12c grid. Required patches depends upon the os platform and current patch level. Please refer below metalink to find which patches you will need for your setup. Patches to apply before upgrading Oracle GI and DB to 19c or downgrading to previous release (Doc ID 2539751.1) For our solaris setup, we have already applied JAN2019 BUNDLE PATCH (GI) . So no need to apply any patches. 2. Download the software and unzip on your first node Create new grid home for oracle 19c . unzip the software at this home location .(grid_home is where we unzip the software). 3. Run the orachk tool as grid owner ( oracle) orachk tool will generate a report for recommendation, that need to be taken care before upgrading. Analyze the html report for any recommendations. 4. Run cluvfy as grid owner ( oracle ) cd dumparea/oracle/app/grid19c syntax – > ./runcluvfy.sh stage -pre crsinst -upgrade -rolling -src_crshome -dest_crshome -dest_version 19.0.0.0.0 -fixup -verbose i.e ./runcluvfy.sh stage -pre crsinst -upgrade -rolling -src_crshome /drcrs/app/oracle/product/grid12c -dest_crshome dumparea/oracle/app/grid19c -dest_version 19.0.0.0.0 -fixup -verbose In case any error reported, fix them before proceeding further.
Step 1

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
mkdir -p /dumparea/oracle/app/grid12c

cd /dumparea/oracle/app/grid12c
unzip -q /dumparea/SOLARIS.SPARC64_193000_grid_home.zip

export GRID_HOME=/dumparea/oracle/app/grid19c
cd /dumparea/oracle/app/grid19c/suptools/orachk/

./orachk –u -o pre

./runcluvfy.sh stage -pre crsinst -upgrade -rolling -src_crshome /drcrs/app/oracle/product/grid12c -dest_crshome dumparea/oracle/app/grid19c -dest_version 19.0.0.0.0  -fixup -verbose



Verifying Physical Memory ...
  Node Name     Available                 Required                  Status
  ------------  ------------------------  ------------------------  ----------
  snode1       254GB (2.66338304E8KB)    8GB (8388608.0KB)         passed
  snode2       254GB (2.66338304E8KB)    8GB (8388608.0KB)         passed
Verifying Physical Memory ...PASSED
Verifying Available Physical Memory ...
  Node Name     Available                 Required                  Status
  ------------  ------------------------  ------------------------  ----------
  snode1       8.5611GB (8977000.0KB)    50MB (51200.0KB)          passed
  snode2       7.3874GB (7746264.0KB)    50MB (51200.0KB)          passed
Verifying Available Physical Memory ...PASSED
Verifying Swap Size ...
  Node Name     Available                 Required                  Status
  ------------  ------------------------  ------------------------  ----------
  snode1       256GB (2.68435448E8KB)    16GB (1.6777216E7KB)      passed
  snode2       256GB (2.68435448E8KB)    16GB (1.6777216E7KB)      passed



.
.
.
.

Verifying network interfaces CLASS/TYPE attribute ...PASSED
Verifying loopback network interface address ...PASSED
Verifying Privileged group consistency for upgrade ...PASSED
Verifying CRS user Consistency for upgrade ...PASSED
Verifying Clusterware Version Consistency ...
  Verifying cluster upgrade state ...PASSED
Verifying Clusterware Version Consistency ...PASSED
Verifying Check incorrectly sized ASM Disks ...PASSED
Verifying Network configuration consistency checks ...PASSED
Verifying File system mount options for path GI_HOME ...PASSED
Verifying OLR Integrity ...PASSED
Verifying Verify that the ASM instance was configured using an existing ASM parameter file. ...PASSED
Verifying User Equivalence ...PASSED
Verifying IP hostmodel ...PASSED
Verifying File system mount options for path /var ...PASSED
Verifying Multiuser services check ...PASSED
Verifying ASM Filter Driver configuration ...PASSED

Pre-check for cluster services setup was successful.

CVU operation performed:      stage -pre crsinst
Date:                         Aug 27, 2019 9:30:53 AM
CVU home:                     /dumparea/oracle/app/grid19c/
User:                         oracle
2

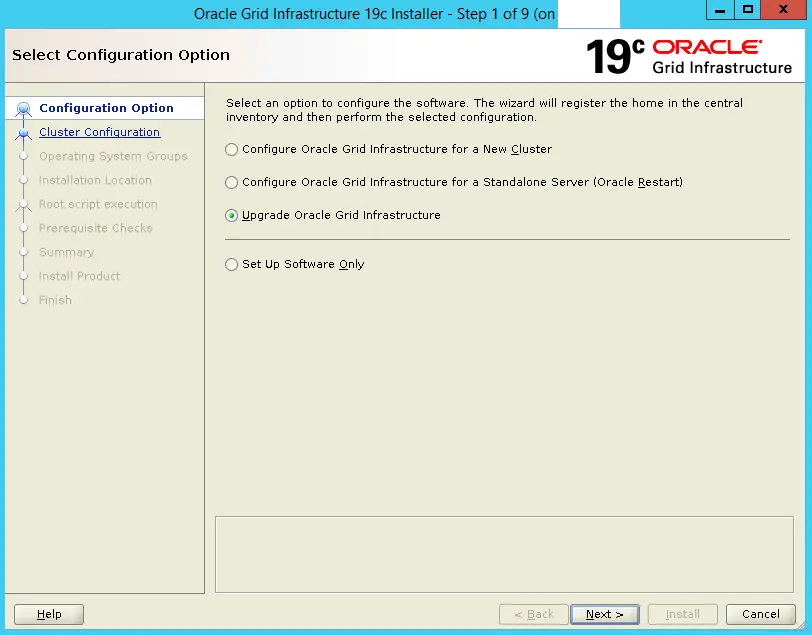

DRY RUN PHASE:( GUI Method)

Dry run phase will  not do any changes to the existing grid setup. It will just check the system readiness. As per oracle note: Dry run does below activities: - Validates storage and network configuration for the new release - Checks if the system meets the software and hardware requirements for the new release - Checks for the patch requirements and apply necessary patches before starting the upgrade - Writes system configuration issues or errors in the log file > NOTE – > Few users commented that , dry run phase restarted their grid . So you are doing this on production, please consider this risk. NOTE – > Few users commented that , dry run phase restarted their grid . So you are doing this on production, please consider this risk. — Run as grid owner ( oracle) unset ORACLE_BASE unset ORACLE_HOME unset ORACLE_SID cd /dumparea/oracle/app/grid19c ./gridSetup.sh -dryRunForUpgrade This warning can be ignored. Run root script only on the local node. > NOTE – Dont run this on remote node. Run only on local node NOTE – Dont run this on remote node. Run only on local node The dry run upgrade is successful. Lets proceed with actual upgrade.
Step 2

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
root@node1:~# /dumparea/oracle/app/grid19c/rootupgrade.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= oracle
    ORACLE_HOME=  /dumparea/oracle/app/grid19c

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The file "oraenv" already exists in /usr/local/bin.  Overwrite it? (y/n) [n]:
The file "coraenv" already exists in /usr/local/bin.  Overwrite it? (y/n) [n]:

Entries will be added to the /var/opt/oracle/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Performing Dry run of the Grid Infrastructure upgrade.
Using configuration parameter file: /dumparea/oracle/app/grid19c/crs/install/crsconfig_params
The log of current session can be found at:
  /dumparea/app/grid/crsdata/node1/crsconfig/rootcrs__2019-08-27_10-37-30AM.log
2019/08/27 10:38:07 CLSRSC-464: Starting retrieval of the cluster configuration data
2019/08/27 10:38:20 CLSRSC-729: Checking whether CRS entities are ready for upgrade, cluster upgrade will not be attempted now. This operation may take a few minutes.
2019/08/27 10:42:04 CLSRSC-693: CRS entities validation completed successfully.
3

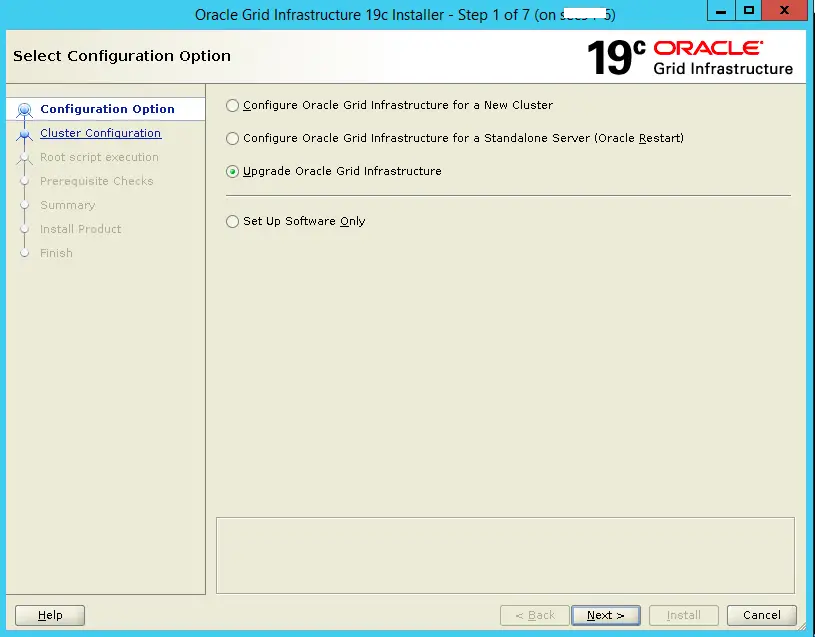

ACTUAL UPGRADE:

Now we will proceed with the actual upgrade in a rolling mode . — Run as grid owner ( oracle ) unset ORACLE_BASE unset ORACLE_HOME unset ORACLE_SID cd /dumparea/oracle/app/grid19c ./gridSetup.sh Now run the rootupgrade.sh first on local node .Once it is successful on local node, then proceed on remote node. Rootupgrade.sh script on node 1:( as root user) Now proceed with node 2: Rootupgrade.sh script on node 2:( as root user) Once rootupgade.sh script executio completed on both nodes. Proceed to resume. We have successful upgraded the grid to 19c version.
Step 3

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
root@node1~#  /dumparea/crsapp/grid19c/rootupgrade.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= oracle
    ORACLE_HOME=  /dumparea/crsapp/grid19c

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The file "oraenv" already exists in /usr/local/bin.  Overwrite it? (y/n) [n]:
The file "coraenv" already exists in /usr/local/bin.  Overwrite it? (y/n) [n]:

Entries will be added to the /var/opt/oracle/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /dumparea/crsapp/grid19c/crs/install/crsconfig_params
The log of current session can be found at:
  /dumparea/orabase/crsdata/node1/crsconfig/rootcrs_node_1_2019-08-27_02-50-29PM.log
2019/08/27 14:50:46 CLSRSC-595: Executing upgrade step 1 of 18: 'UpgradeTFA'.
2019/08/27 14:50:47 CLSRSC-4015: Performing install or upgrade action for Oracle Trace File Analyzer (TFA) Collector.
2019/08/27 14:50:47 CLSRSC-4012: Shutting down Oracle Trace File Analyzer (TFA) Collector.
2019/08/27 14:51:14 CLSRSC-4013: Successfully shut down Oracle Trace File Analyzer (TFA) Collector.
2019/08/27 14:51:14 CLSRSC-595: Executing upgrade step 2 of 18: 'ValidateEnv'.
2019/08/27 14:51:17 CLSRSC-595: Executing upgrade step 3 of 18: 'GetOldConfig'.
2019/08/27 14:51:17 CLSRSC-464: Starting retrieval of the cluster configuration data
2019/08/27 14:51:24 CLSRSC-692: Checking whether CRS entities are ready for upgrade. This operation may take a few minutes.
2019/08/27 14:51:27 CLSRSC-4003: Successfully patched Oracle Trace File Analyzer (TFA) Collector.
2019/08/27 14:55:10 CLSRSC-693: CRS entities validation completed successfully.
2019/08/27 14:55:24 CLSRSC-465: Retrieval of the cluster configuration data has successfully completed.
2019/08/27 14:55:24 CLSRSC-595: Executing upgrade step 4 of 18: 'GenSiteGUIDs'.
2019/08/27 14:55:26 CLSRSC-595: Executing upgrade step 5 of 18: 'UpgPrechecks'.
2019/08/27 14:55:27 CLSRSC-595: Executing upgrade step 6 of 18: 'SetupOSD'.
2019/08/27 14:55:27 CLSRSC-595: Executing upgrade step 7 of 18: 'PreUpgrade'.
2019/08/27 14:55:28 CLSRSC-595: Executing upgrade step 8 of 18: 'CheckCRSConfig'.
2019/08/27 14:55:32 CLSRSC-595: Executing upgrade step 9 of 18: 'UpgradeOLR'.
2019/08/27 14:55:33 CLSRSC-595: Executing upgrade step 10 of 18: 'ConfigCHMOS'.
2019/08/27 14:55:34 CLSRSC-595: Executing upgrade step 11 of 18: 'UpgradeAFD'.
2019/08/27 14:55:36 CLSRSC-595: Executing upgrade step 12 of 18: 'createOHASD'.
2019/08/27 14:55:38 CLSRSC-595: Executing upgrade step 13 of 18: 'ConfigOHASD'.
2019/08/27 14:55:44 CLSRSC-595: Executing upgrade step 14 of 18: 'InstallACFS'.
2019/08/27 14:55:47 CLSRSC-595: Executing upgrade step 15 of 18: 'InstallKA'.
2019/08/27 14:55:56 CLSRSC-595: Executing upgrade step 16 of 18: 'UpgradeCluster'.
clscfg: EXISTING configuration version 5 detected.
Successfully taken the backup of node specific configuration in OCR.
Successfully accumulated necessary OCR keys.
Creating OCR keys for user 'root', privgrp 'root'..
Operation successful.
2019/08/27 15:00:01 CLSRSC-343: Successfully started Oracle Clusterware stack
2019/08/27 15:00:16 CLSRSC-595: Executing upgrade step 17 of 18: 'UpgradeNode'.
2019/08/27 15:00:22 CLSRSC-474: Initiating upgrade of resource types
2019/08/27 15:02:49 CLSRSC-475: Upgrade of resource types successfully initiated.
2019/08/27 15:03:30 CLSRSC-595: Executing upgrade step 18 of 18: 'PostUpgrade'.
2019/08/27 15:03:47 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded

root@node2:~# /dumparea/crsapp/grid19c/rootupgrade.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= oracle
    ORACLE_HOME=  /dumparea/crsapp/grid19c

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The file "oraenv" already exists in /usr/local/bin.  Overwrite it? (y/n) [n]:
The file "coraenv" already exists in /usr/local/bin.  Overwrite it? (y/n) [n]:

Entries will be added to the /var/opt/oracle/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /dumparea/crsapp/grid19c/crs/install/crsconfig_params
The log of current session can be found at:
  /dumparea/orabase/crsdata/node2/crsconfig/rootcrs_node2_2019-08-27_03-09-45PM.log
2019/08/27 15:10:03 CLSRSC-595: Executing upgrade step 1 of 18: 'UpgradeTFA'.
2019/08/27 15:10:03 CLSRSC-4015: Performing install or upgrade action for Oracle Trace File Analyzer (TFA) Collector.
2019/08/27 15:10:04 CLSRSC-595: Executing upgrade step 2 of 18: 'ValidateEnv'.
2019/08/27 15:10:06 CLSRSC-595: Executing upgrade step 3 of 18: 'GetOldConfig'.
2019/08/27 15:10:06 CLSRSC-464: Starting retrieval of the cluster configuration data
2019/08/27 15:14:37 CLSRSC-4003: Successfully patched Oracle Trace File Analyzer (TFA) Collector.

2019/08/27 15:25:26 CLSRSC-465: Retrieval of the cluster configuration data has successfully completed.
2019/08/27 15:25:26 CLSRSC-595: Executing upgrade step 4 of 18: 'GenSiteGUIDs'.
2019/08/27 15:25:26 CLSRSC-595: Executing upgrade step 5 of 18: 'UpgPrechecks'.
2019/08/27 15:25:28 CLSRSC-363: User ignored prerequisites during installation
2019/08/27 15:25:31 CLSRSC-595: Executing upgrade step 6 of 18: 'SetupOSD'.
2019/08/27 15:25:31 CLSRSC-595: Executing upgrade step 7 of 18: 'PreUpgrade'.

ASM configuration upgraded in local node successfully.

2019/08/27 15:25:49 CLSRSC-466: Starting shutdown of the current Oracle Grid Infrastructure stack
2019/08/27 15:25:50 CLSRSC-467: Shutdown of the current Oracle Grid Infrastructure stack has successfully completed.
2019/08/27 15:25:54 CLSRSC-595: Executing upgrade step 8 of 18: 'CheckCRSConfig'.
2019/08/27 15:25:59 CLSRSC-595: Executing upgrade step 9 of 18: 'UpgradeOLR'.
2019/08/27 15:26:06 CLSRSC-595: Executing upgrade step 10 of 18: 'ConfigCHMOS'.
2019/08/27 15:26:07 CLSRSC-595: Executing upgrade step 11 of 18: 'UpgradeAFD'.
2019/08/27 15:26:10 CLSRSC-595: Executing upgrade step 12 of 18: 'createOHASD'.
2019/08/27 15:26:13 CLSRSC-595: Executing upgrade step 13 of 18: 'ConfigOHASD'.
2019/08/27 15:26:14 CLSRSC-329: Replacing Clusterware entries in file '/etc/inittab'
2019/08/27 15:26:59 CLSRSC-595: Executing upgrade step 14 of 18: 'InstallACFS'.
2019/08/27 15:27:53 CLSRSC-595: Executing upgrade step 15 of 18: 'InstallKA'.
2019/08/27 15:27:56 CLSRSC-595: Executing upgrade step 16 of 18: 'UpgradeCluster'.
2019/08/27 15:29:58 CLSRSC-343: Successfully started Oracle Clusterware stack
clscfg: EXISTING configuration version 19 detected.
Successfully taken the backup of node specific configuration in OCR.
Successfully accumulated necessary OCR keys.
Creating OCR keys for user 'root', privgrp 'root'..
Operation successful.
2019/08/27 15:30:24 CLSRSC-595: Executing upgrade step 17 of 18: 'UpgradeNode'.
Start upgrade invoked..
Upgrading CRS managed objects
Upgrading 50 CRS resources
Completed upgrading CRS resources
Upgrading 69 CRS types
Completed upgrading CRS types
Upgrading 11 CRS server pools
Completed upgrading CRS server pools
Upgrading 1 CRS server categories
Completed upgrading CRS server categories
Upgrading 2 old servers
Completed upgrading servers
CRS upgrade has completed.
2019/08/27 15:30:37 CLSRSC-478: Setting Oracle Clusterware active version on the last node to be upgraded
2019/08/27 15:30:38 CLSRSC-482: Running command: '/dumparea/crsapp/grid19c/bin/crsctl set crs activeversion'
Started to upgrade the active version of Oracle Clusterware. This operation may take a few minutes.
Started to upgrade CSS.
CSS was successfully upgraded.
Started to upgrade Oracle ASM.
Oracle ASM was successfully upgraded.
Started to upgrade CRS.
CRS was successfully upgraded.
Started to upgrade Oracle ACFS.
Oracle ACFS was successfully upgraded.
Successfully upgraded the active version of Oracle Clusterware.
Oracle Clusterware active version was successfully set to 19.0.0.0.0.
2019/08/27 15:31:49 CLSRSC-479: Successfully set Oracle Clusterware active version
2019/08/27 15:36:13 CLSRSC-476: Finishing upgrade of resource types
2019/08/27 15:36:58 CLSRSC-477: Successfully completed upgrade of resource types
2019/08/27 15:39:08 CLSRSC-595: Executing upgrade step 18 of 18: 'PostUpgrade'.
Successfully updated XAG resources.
2019/08/27 15:40:01 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded
You have new mail in /var/mail/root
4

POST CHECK :

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
oracle@node1:~$ crsctl query crs activeversion
Oracle Clusterware active version on the cluster is [19.0.0.0.0]

oracle@node1:~$ crsctl query crs softwareversion
Oracle Clusterware version on node [node1] is [19.0.0.0.0]



oracle@node2:~$ crsctl query crs activeversion
Oracle Clusterware active version on the cluster is [19.0.0.0.0]

oracle@node2:~$ crsctl query crs softwareversion
Oracle Clusterware version on node [node2] is [19.0.0.0.0]

crsctl stat res -t
crsctl check crs
crsctl stat res -t -init
5

TROUBLESHOOTING:

1. If rootupgrade.sh script failed on local node: In case rootupgrade.sh script failed on local node either due to any error or system got rebooted during that time, Then analyze the error and fix it . Once fixed, resume the ugprade with below step. –run rootupgrade.sh script again on node 1: cd /dumparea/crsapp/grid19c /dumparea/crsapp/grid19c/rootupgrade.sh –run rootupgrade.sh script again on node 2 Once rootupgrade.sh script is successful on both the node. We can start the gridsetup with response file again to complete the rest of the upgrade. Response file can be found at $GRID_HOME_19C/install/response . run gridsetup.sh script with the resonse file : ./gridSetup.sh -executeConfigTools -responseFile /dumparea/crsapp/grid19c/install/response/gridinstall_5_07_2019.rsp This will skip the already executed tasks and complete the pending configuration. 2. If rootupgrade script failed on remote node : At this stage , rootupgrade.sh is successful on local node, but failed on remote node. in that case, once issue is resolved on remote node, resume the upgrade by running rootupgrade.sh again on remote node. — on node 2 cd /dumparea/crsapp/grid19c /dumparea/crsapp/grid19c/rootupgrade.sh If the gridsetup.sh GUI is not available, then we can start the gridsetup by using the response file. 3. OUI-10166: The permission 0755 cannot be set for the file rootconfig.sh . While starting the actual upgrade, If you are seeing the error. as OUI-10166: The permissions 0755 cannot be set for the file $GRID_HOME/crs/config/rootconfig.sh. OUI-10175: The effective user ID does not match the owner of the file or the process is not the user user. SOLUTION: Check the owner of the file. $GRID_HOME/crs/config/rootconfig.sh . If it is owned by root , then change it to oracle and rerun the gridsetup.sh script. chown oracle:oinstall rootconfig.sh 4. PRVF-5311 : File “/tmp/InstallActions error: Cause – Either passwordless SSH connectivity is not setup between specified node(s) or they are not reachable. Refer to the logs for more details. Action – Refer to the logs for more details or contact Oracle Support Services. More Details PRVF-5311 : File “/tmp/GridSetupActions2022-11-06_03-12-09AM/.getFileInfo150997.out” either does not exist or is not accessible on node. If at pre-requisite stage this error is coming, then you can try below solution.

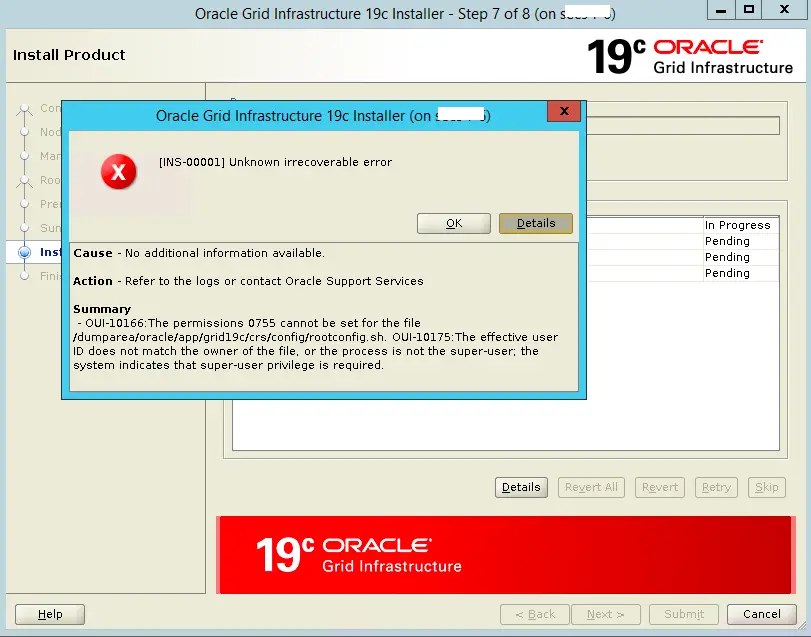

Step 5

Code/Command (click line numbers to comment):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Do below changes to scp. (

# Rename the original scp. ( find where is the scp executable file present)

mv /usr/bin/scp /usr/bin/scp.orig

# Create a new file .

vi /usr/bin/scp

# Add the below line to the new created file .
/usr/bin/scp.orig -T $*

# Change the file permission to 555.

chmod 555 /usr/bin/scp


RETRY THE UPGRADE PROCESS .

###Once upgrade is done , you can revert to the original

mv /usr/bin/scp.orig /usr/bin/scp
6

SEE ALSO:

- Useful Srvctl Commands - Useful CRSCTL Commands - Useful Gather Statistics Commands In Oracle - Useful ADRCI Commands In Oracle - Useful DGMGRL Commands In Oracle Dataguard - Useful database monitoring queries - Useful Flashback Related Commands - Useful scheduler job Related Commands - Useful Oracle Auditing Related Commands - Useful RMAN Commands - Useful TFACTL Commands

Comments (0)

Please to add comments

No comments yet. Be the first to comment!
